SKU: IM2000

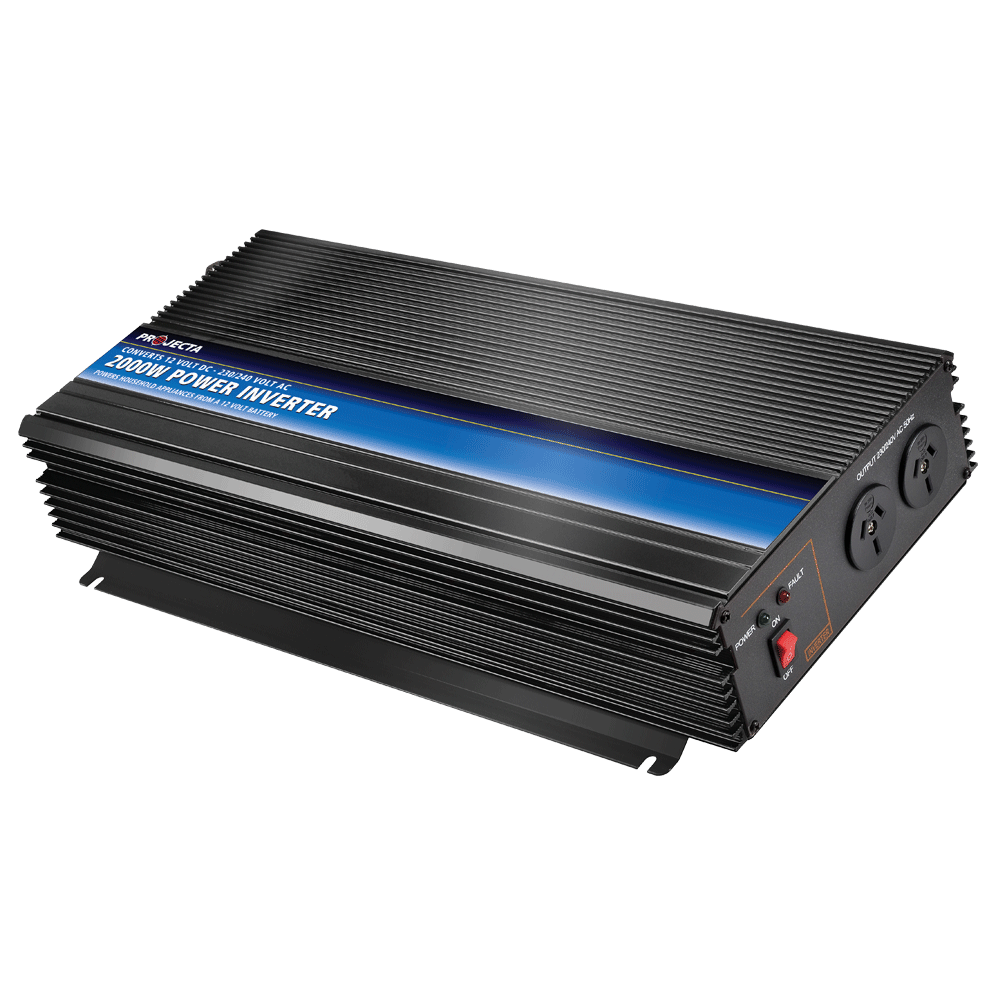

12V 2000W MODIFIED SINE WAVE INVERTER

Sale price$904.18

DESCRIPTION

The IM2000 inverter combines all the features you need to power appliances that make caravanning more enjoyable such as microwaves, toasters, bar fridges and televisions.

FEATURES

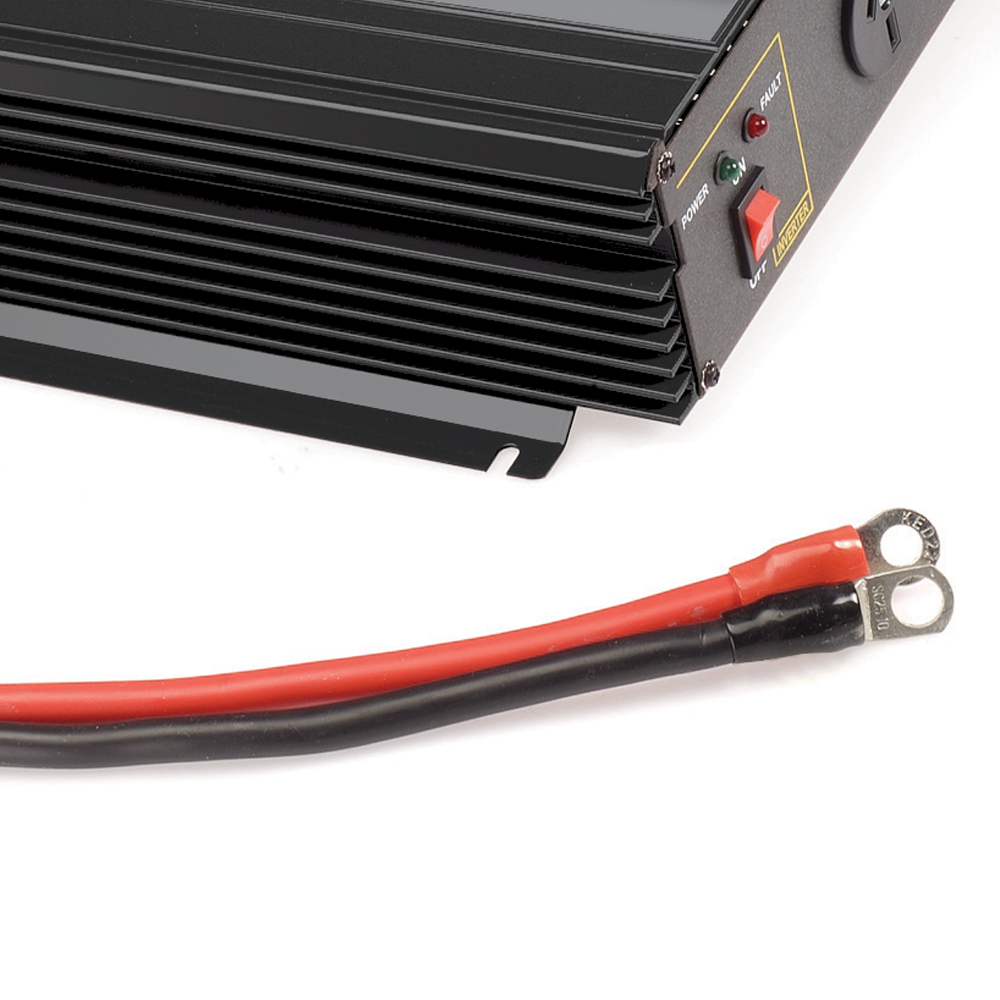

Battery cable
1100mm 25mm2 battery cable

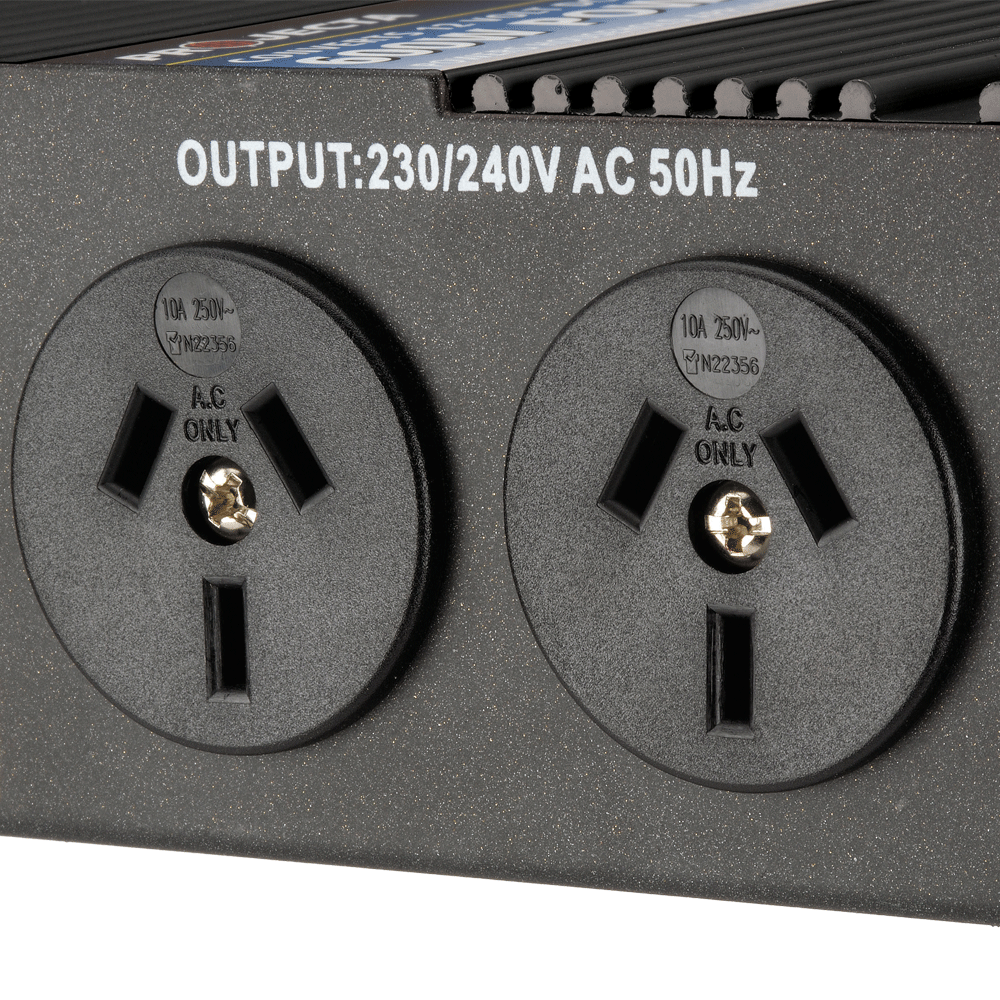

Twin power sockets
AS/NZS approved 240V sockets. Inverter designed to Australian standard AS4763

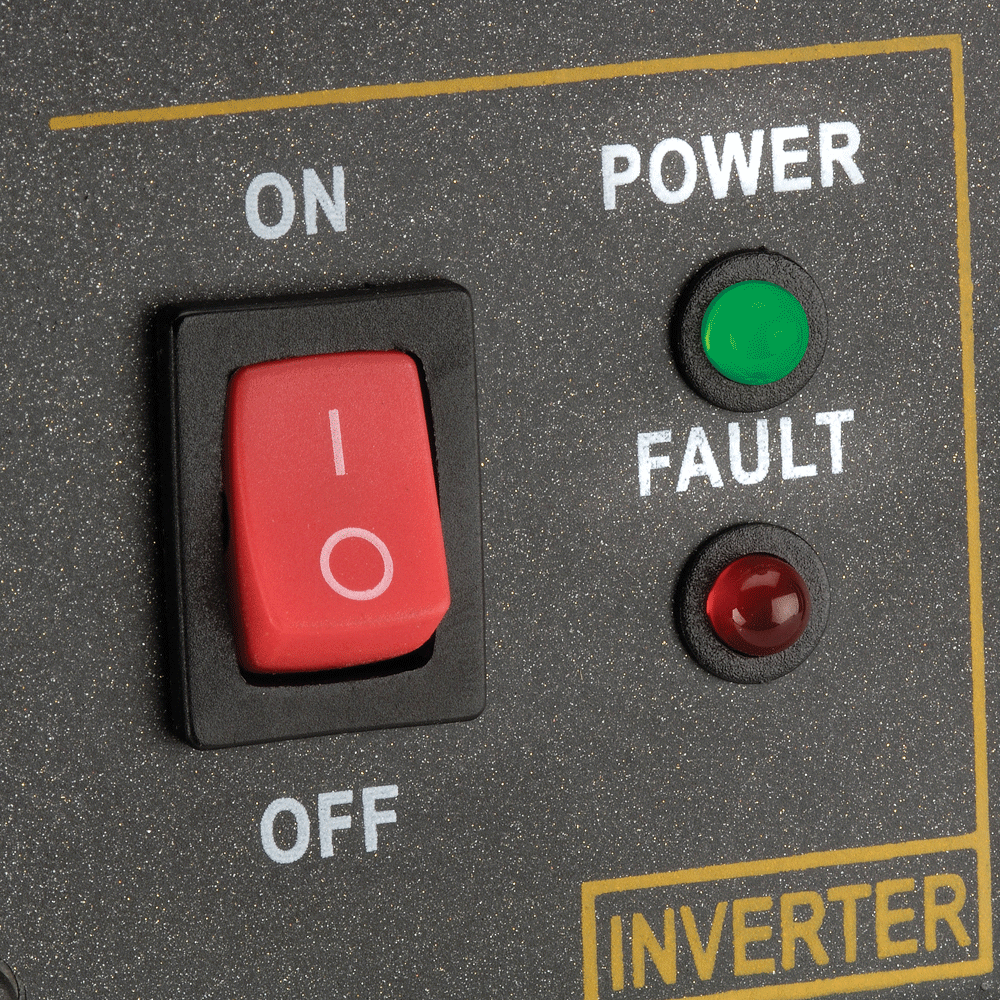

L.E.D indicators
Power and fault lights with audible alarm if problem is detected

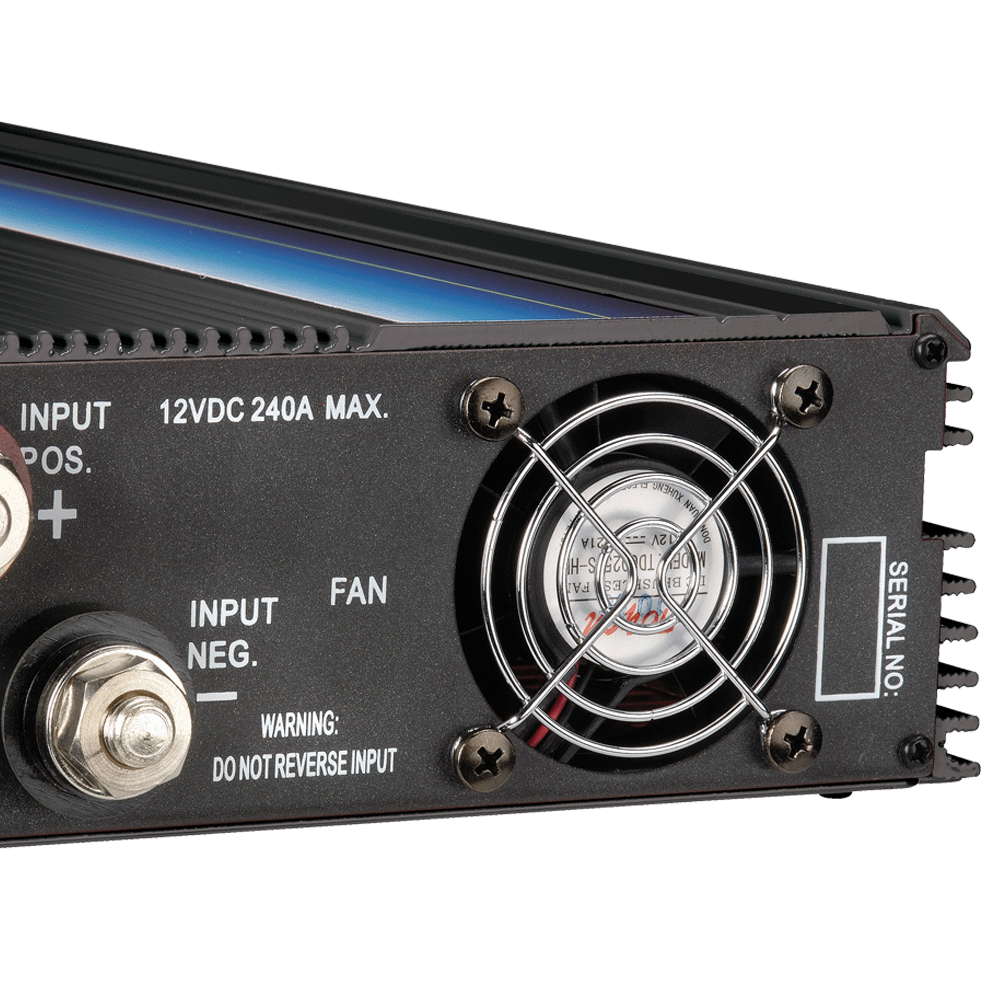

Efficient design
Temperature controlled automatic cooling fan

Mounting flange
Convenient and robust mounting points

SPECIFICATIONS

PART NO

IM2000

INPUT

12V DC, 240A Max

NO LOAD CURRENT DRAW

0.8A

OUTPUT

230/240VAC, 50Hz (Modified Sine)

OUTPUT POWER

2000W Continuous (4000W Peak)

INVERTER CLASSIFICATION

Equipotentially Bonded (EPB)

EFFICIENCY

85–90%

LOW BATTERY ALARM

10.5 Volt

SHUTDOWN

10.0 Volt (±0.2V)

COOLING FAN

Automatic temperature controlled

THERMAL SHUTDOWN

65°C (±5°C)

FUSE

12 x 20A

IDEAL BATTERY SIZE

85–400Ah

MINIMUM BATTERY SIZE

85Ah, 600CCA

RUN TIME WITH 2000W ON 85Ah BATTERY

5 minutes

RUN TIME WITH 100W GLOBE ON 85Ah BATTERY

7 hours

WARNING ALARM

LED & Audible alarm indicates a fault

APPROVALS

Electrical Safety, EMC

The IM2000 inverter combines all the features you need to power appliances that make caravanning more enjoyable such as microwaves, toasters, bar fridges and televisions.

FEATURES

Battery cable
1100mm 25mm2 battery cable

Twin power sockets
AS/NZS approved 240V sockets. Inverter designed to Australian standard AS4763

L.E.D indicators
Power and fault lights with audible alarm if problem is detected

Efficient design
Temperature controlled automatic cooling fan

Mounting flange
Convenient and robust mounting points

SPECIFICATIONS

PART NO

IM2000

INPUT

12V DC, 240A Max

NO LOAD CURRENT DRAW

0.8A

OUTPUT

230/240VAC, 50Hz (Modified Sine)

OUTPUT POWER

2000W Continuous (4000W Peak)

INVERTER CLASSIFICATION

Equipotentially Bonded (EPB)

EFFICIENCY

85–90%

LOW BATTERY ALARM

10.5 Volt

SHUTDOWN

10.0 Volt (±0.2V)

COOLING FAN

Automatic temperature controlled

THERMAL SHUTDOWN

65°C (±5°C)

FUSE

12 x 20A

IDEAL BATTERY SIZE

85–400Ah

MINIMUM BATTERY SIZE

85Ah, 600CCA

RUN TIME WITH 2000W ON 85Ah BATTERY

5 minutes

RUN TIME WITH 100W GLOBE ON 85Ah BATTERY

7 hours

WARNING ALARM

LED & Audible alarm indicates a fault

APPROVALS

Electrical Safety, EMC
