WARN

XD9000-S

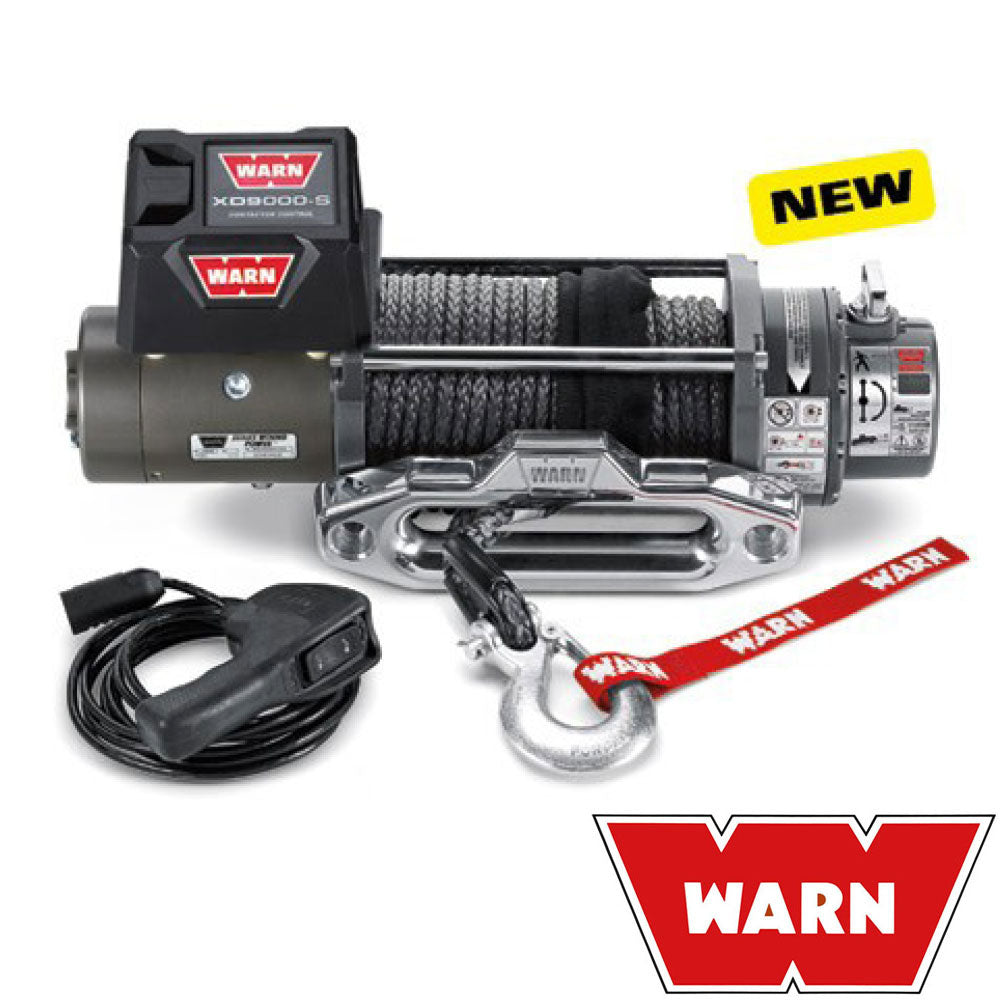

Xd9000 S 12V Self Recovery Winch 24M Synthetic Rope

Speed, Reliability and Synthetic Rope

Long time best selling winch now with WARN Spydura synthetic rope

  • Comes with 80 ft. of 3/8″ (24.38m of 9.5mm) WARN Spydura synthetic rope, hook, remote control on 12′ (3.7m) lead and polished aluminium hawse fairlead
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Low-profile design and separate control box allows for a wide range of mounting options
  • Next-generation contactor control pack delivers long duty cycles and exceptional durability
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Exclusive brake design provides superior control while winching
  • Newly designed hand-held remote control
  • Chip-resistant, powder-coated finish

The corded WARN remote is constructed of durable EPDM rubber, and features enhanced switch sealing.

SPECIFICATIONS:

  • Winch model: WARN XD9000-s
  • Part number: PN 88550
  • Rated line pull: 9,000 lbs., (4080 kg) single-line
  • Motor: Series Wound
  • Electrical controls: Contactor
  • Remote Control: Remote switch 12′ (3.7m) lead
  • Geartrain: 3-Stage Planetary
  • Gear ratio: 156:1
  • Clutch (freespooling): Sliding Ring Gear
  • Brake: Automatic Direct Drive Cone
  • Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
  • Weight: 59 lbs. (26.8 kg)
  • Synthetic Rope: 80′, 3/8″ diameter (24.38m, 9.5mm diam.)
  • Fairlead: Polished Aluminum Hawse
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72″ (1.83m)
  • Finish: Argent Gray Powder Coat
