SKU: BM320

12V SMART BATTERY GAUGE

Sale price$286.75

DESCRIPTION

A sophisticated, full colour LCD monitor that accurately displays a battery’s total capacity, overall health and general status. Ideal for camper trailer and caravan interiors.

FEATURES

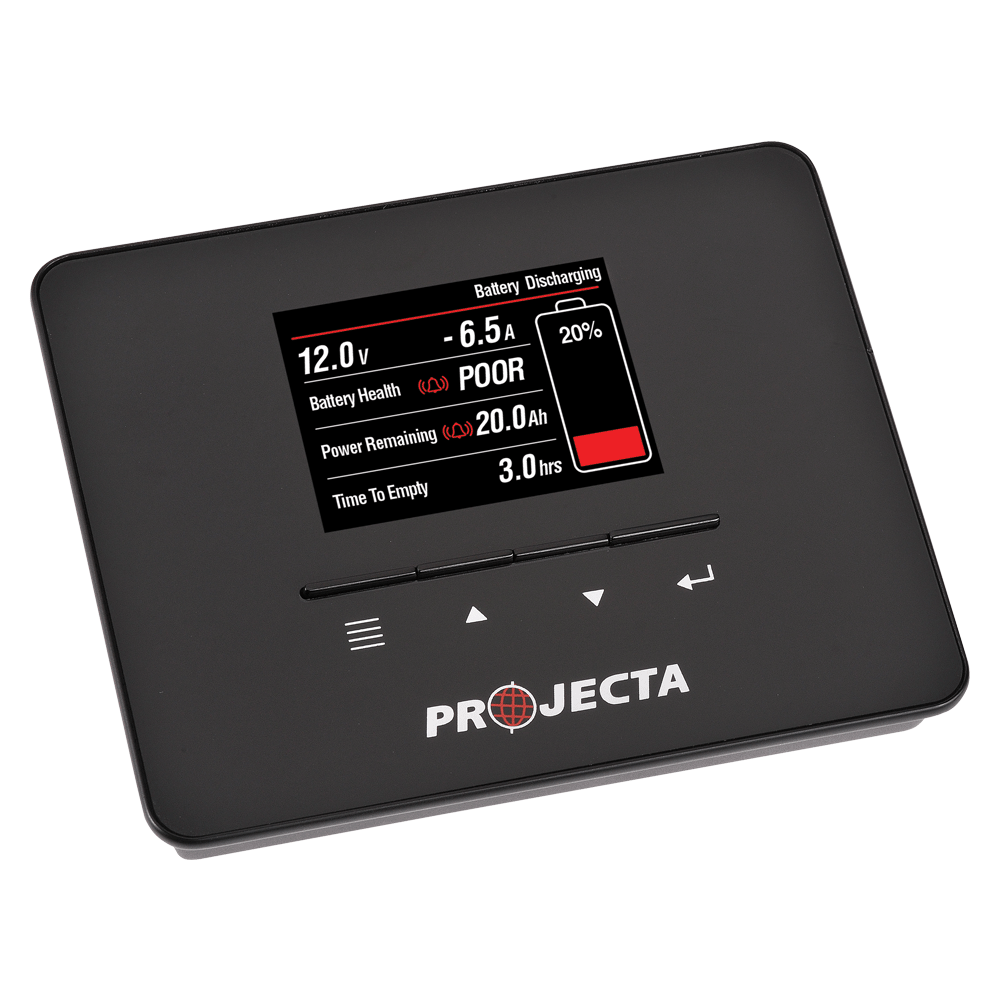

2.4" colour LCD screen
High intensity LCD screen displays: predicted state of charge, battery health, time to full charge and time to empty

Installation kit

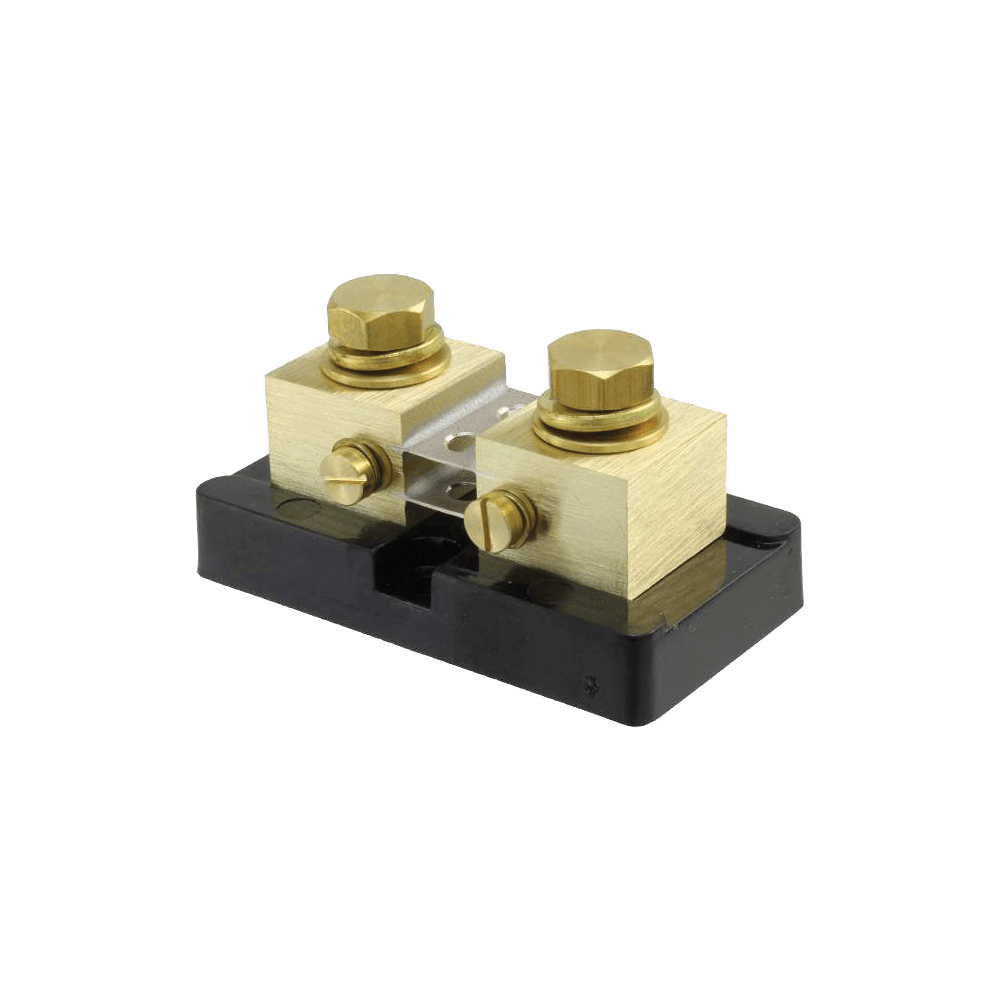

Kit includes 500 Amp shunt and terminals for professional installation

Total user control

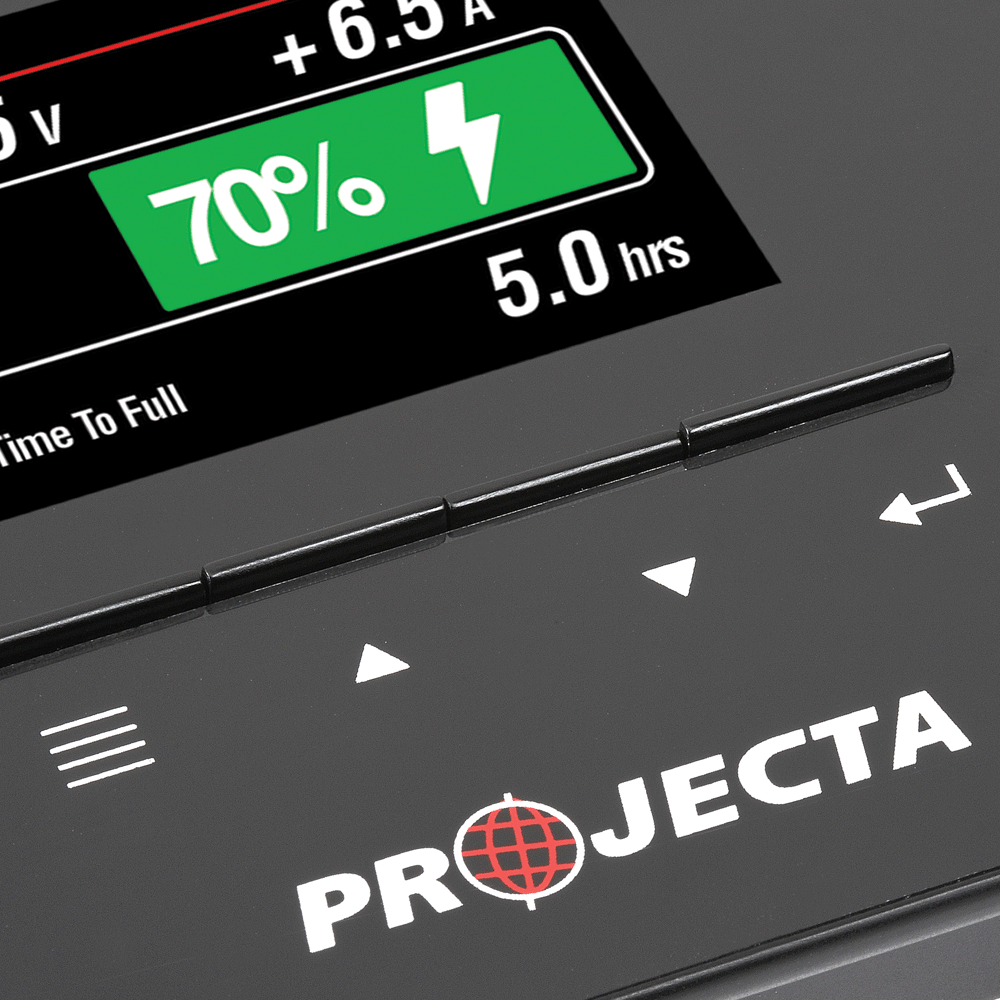

Easy to use and navigate buttons provide the user total control and the ability to program low battery capacity and battery health alarms

1.5M pre-wired harness

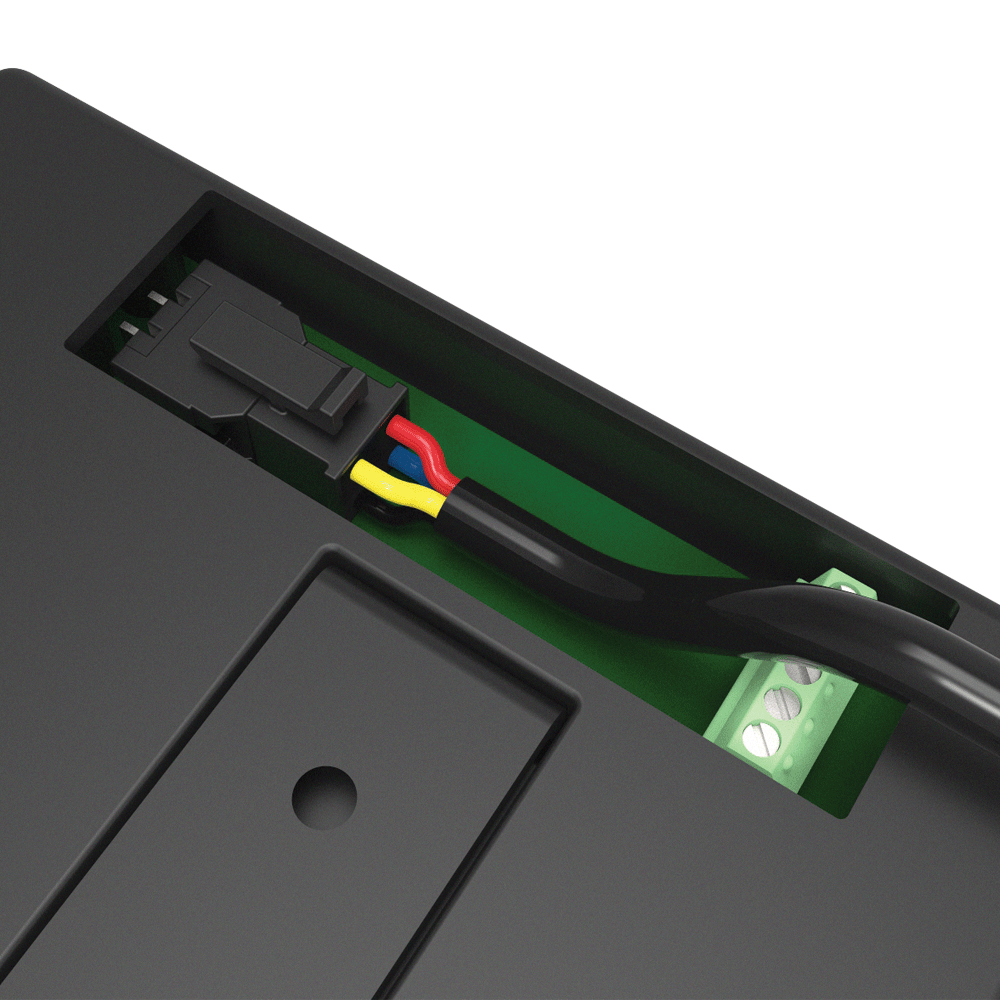

Supplied pre-wired with 4 pin connector into the rear of the unit. A separate terminal block provides a further wiring option

Ease of fitment

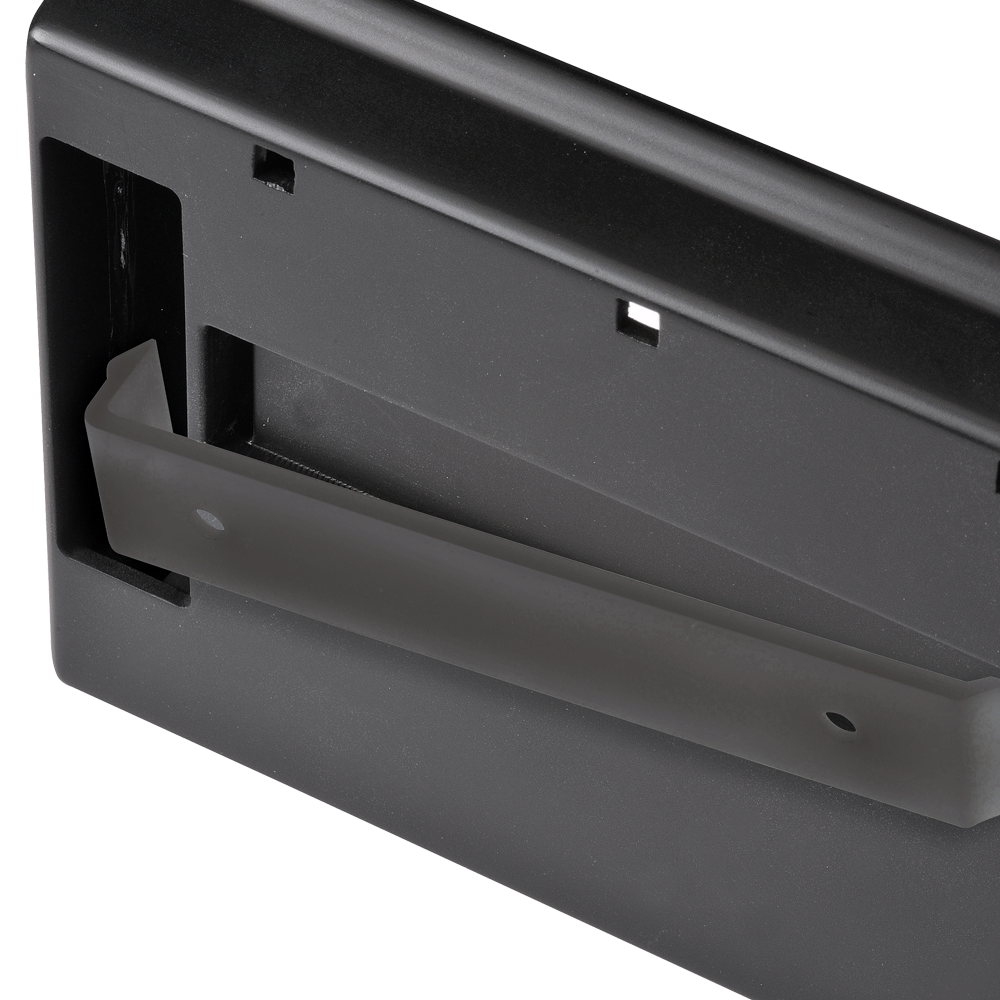

Easy and secure surface mount installation via supplied ‘click-fit’ mounting bracket enabling fixture to any surface



SPECIFICATIONS

PART NO

BM320

CURRENT DRAW

12V/1.5mAdc

INPUT VOLTAGE RANGE

6.0–17.0Vdc

MAX CURRENT

320A

BATTERY CAPACITY SUPPORTED

5-320AH

DISPLAY RESOLUTION

Current: 0.1A
Voltage: 0.1V
Battery Capacity: 0.1Ah

TYPE OF BATTERY SUPPORTED

Wet/AGM/Gel/Calcium

CABLE LENGTH

1.5m

CONNECTORS

Terminal Block
Molex 4 pin snap fit

DISPLAY

TIME REMAINING (to full/to empty)



POWER REMAINING (Ah)



CHARGING/DISCHARGING STATUS



BATTERY STATE OF HEALTH (Ideal, Good, Fair, Poor)



PROTECTION

MINIMUM VOLTAGE

6V

INPUT OVER VOLTAGE PROTECTION

17V

REVERSE POLARITY PROTECTED



INSTRUCTION MANUAL

> Download PDF

A sophisticated, full colour LCD monitor that accurately displays a battery’s total capacity, overall health and general status. Ideal for camper trailer and caravan interiors.

FEATURES

2.4" colour LCD screen
High intensity LCD screen displays: predicted state of charge, battery health, time to full charge and time to empty

Installation kit
Kit includes 500 Amp shunt and terminals for professional installation

Total user control
Easy to use and navigate buttons provide the user total control and the ability to program low battery capacity and battery health alarms

1.5M pre-wired harness
Supplied pre-wired with 4 pin connector into the rear of the unit. A separate terminal block provides a further wiring option

Ease of fitment
Easy and secure surface mount installation via supplied ‘click-fit’ mounting bracket enabling fixture to any surface



SPECIFICATIONS

PART NO

BM320

CURRENT DRAW

12V/1.5mAdc

INPUT VOLTAGE RANGE

6.0–17.0Vdc

MAX CURRENT

320A

BATTERY CAPACITY SUPPORTED

5-320AH

DISPLAY RESOLUTION

Current: 0.1A
Voltage: 0.1V
Battery Capacity: 0.1Ah

TYPE OF BATTERY SUPPORTED

Wet/AGM/Gel/Calcium

CABLE LENGTH

1.5m

CONNECTORS

Terminal Block
Molex 4 pin snap fit

DISPLAY

TIME REMAINING (to full/to empty)



POWER REMAINING (Ah)



CHARGING/DISCHARGING STATUS



BATTERY STATE OF HEALTH (Ideal, Good, Fair, Poor)



PROTECTION

MINIMUM VOLTAGE

6V

INPUT OVER VOLTAGE PROTECTION

17V

REVERSE POLARITY PROTECTED



INSTRUCTION MANUAL

> Download PDF
