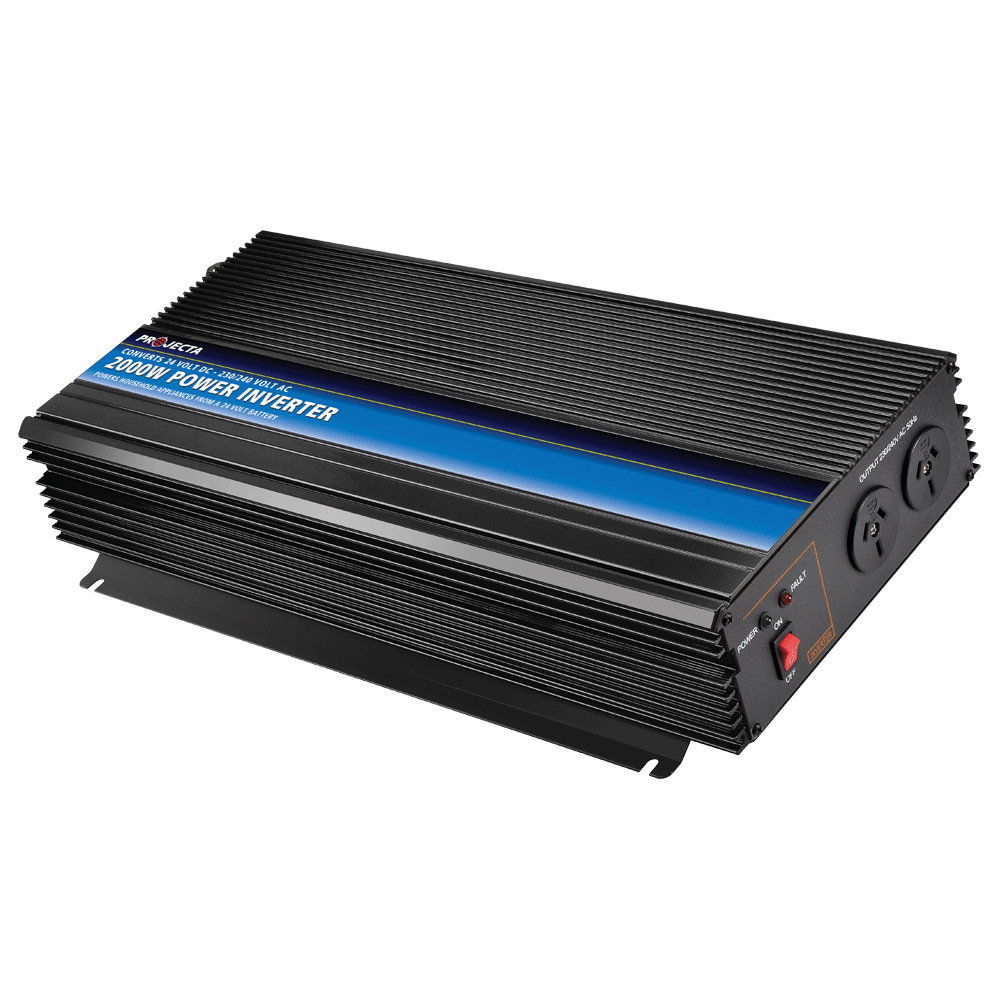

IM2000-24

24V 2000W MODIFIED SINE WAVE INVERTER

The perfect inverter to run the comforts of home when on long
and demanding road trips.

FEATURES

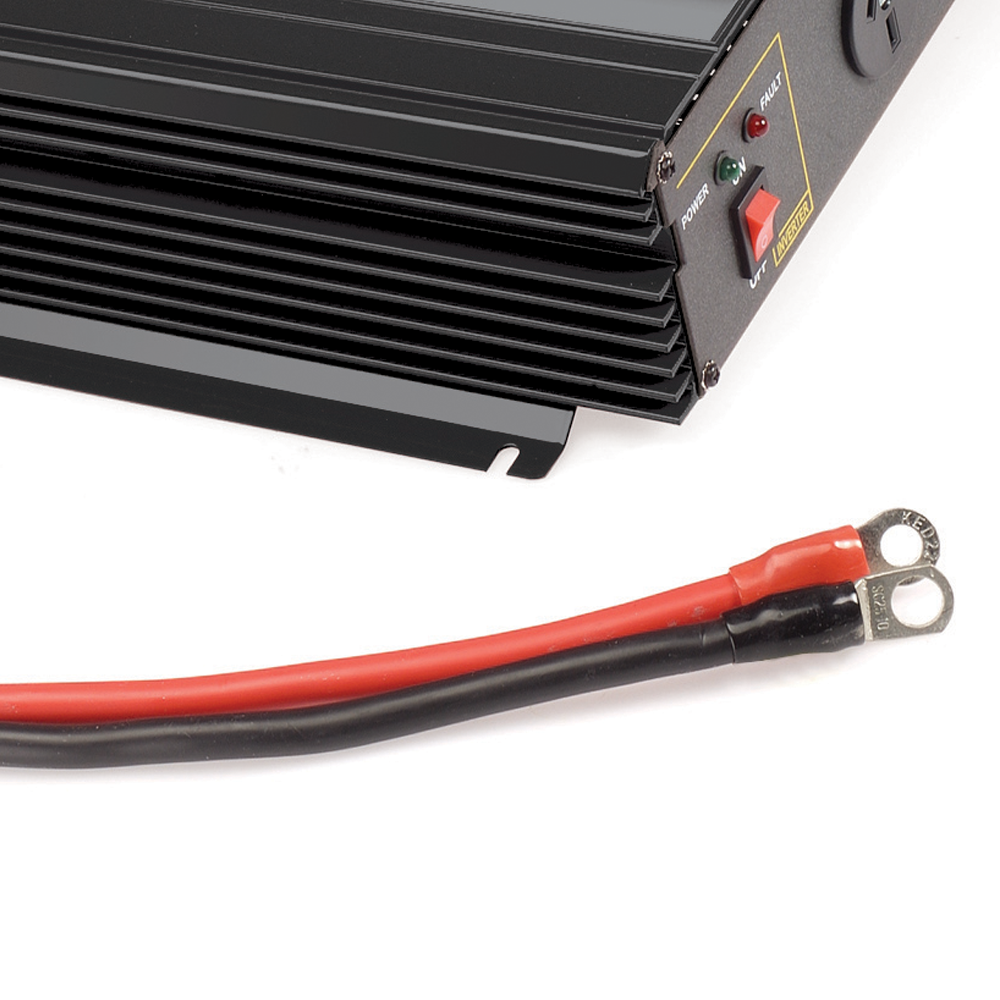

Battery cable
1100mm 25mm2 battery cable

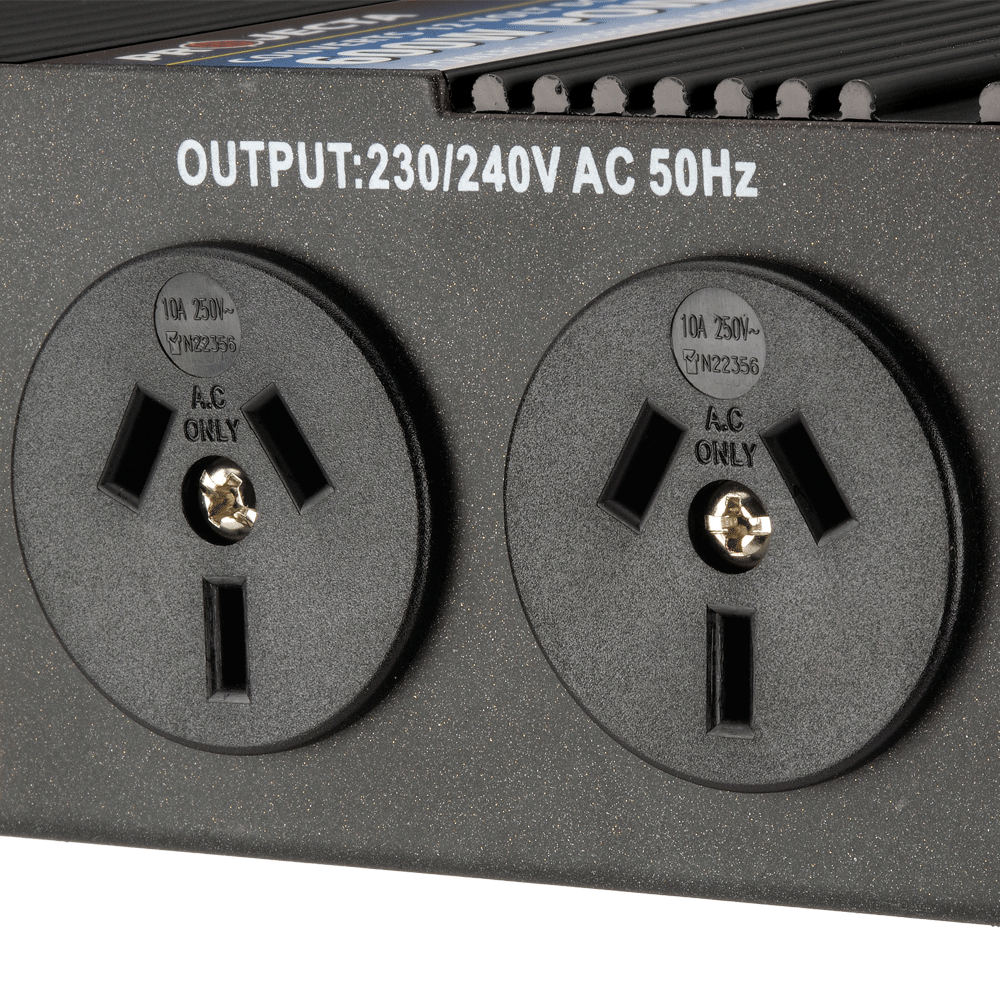

Twin power sockets
AS/NZS approved 240V sockets. Inverter designed to Australian standard AS4763

L.E.D indicators
Power and fault lights with audible alarm if problem is detected

Efficient design
Temperature controlled automatic cooling fan

Mounting flange
Convenient and robust mounting points



SPECIFICATIONS

PART NO

IM2000-24

INPUT

24VDC, 120A Max

NO LOAD CURRENT DRAW

0.6A

OUTPUT

230/240VAC, 50Hz (Modified Sine)

OUTPUT POWER

2000W Continuous (4000W Peak)

INVERTER CLASSIFICATION

Equipotentially Bonded (EPB)

EFFICIENCY

85–90%

LOW BATTERY ALARM

21.0 Volt

SHUTDOWN

20.0 Volt (±0.2V)

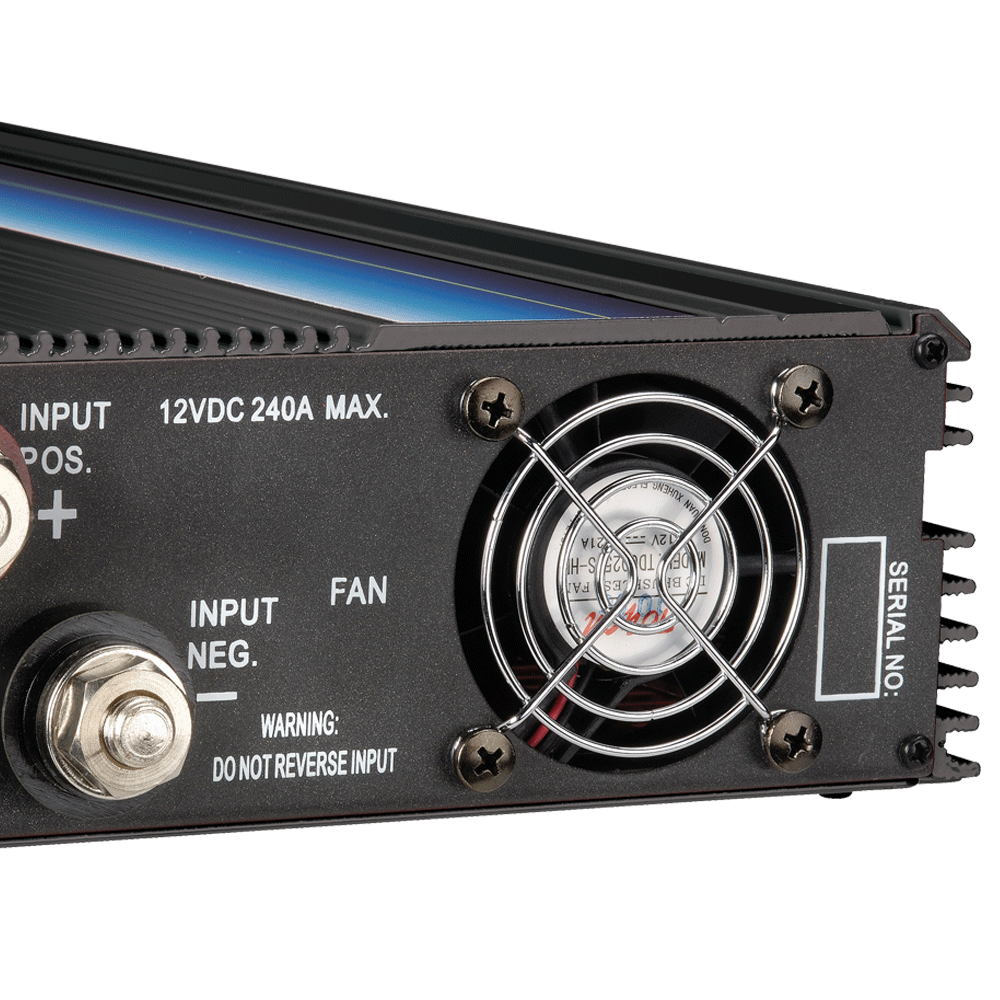

COOLING FAN

Automatic temperature controlled

THERMAL SHUTDOWN

65°C (±5°C)

FUSE

12 x 10A

IDEAL BATTERY SIZE

50–200Ah

MINIMUM BATTERY SIZE

50Ah, 400CCA

RUN TIME WITH 2000W ON 85Ah BATTERY

5 minutes

RUN TIME WITH 100W GLOBE ON 50Ah BATTERY

7 hours

WARNING ALARM

LED & Audible alarm indicates a fault

APPROVALS

Electrical Safety, EMC



INSTRUCTION MANUAL

> Download PDF
