6DBI UHF ANTENNA

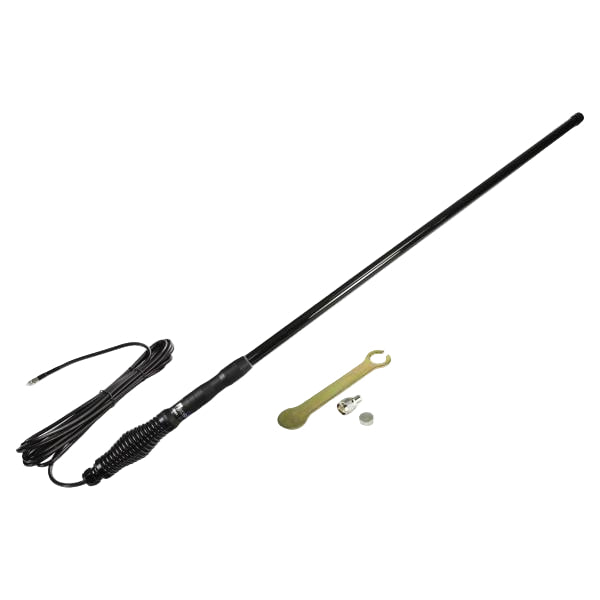

The Aerpro CBA6B 6dBi 477 MHz Heavy Duty Black Radome UHF Antenna is compatible with all brands of 477 MHz UHF CB Radios in Australia and New Zealand. With 6 dBi gain, this medium gain antenna is a great all round performing antenna. The elliptical radiation pattern is more rounded compared to a high gain antenna and radiates further compared to a low gain antenna, making it ideal for medium range communication in various environments such as suburban landscapes, towns and low density woodlands. The 1065 mm length antenna is encased in a high quality fibreglass tube and secured to a heavy duty black coated stainless steel spring. Due to its heavy duty design and weight, the CBA6B is recommended to be installed on the bullbar of the vehicle, making it suitable for trucks and 4WDs. The antenna is ground independent so it will maintain a stable radiation pattern. The elevated feed design helps raise the radiation pattern above the vehicle roof and other obstructions to ensure high performance when mounted on a bullbar. It is fitted with 4.5 metre RG58 coaxial cable which is pre‑terminated with an FME connector making it easy to install through the firewall grommet in vehicles. An FME to UHF PL259 screw on adaptor is also included as well as a mounting spanner for hassle-free installation. Built sturdy for the Australian outback, the CBA6B is a good all-purpose town and country antenna.

Features

• Suitable for use with all 477 MHz UHF CB Radios in Australia and New Zealand
• 6 dBi Gain, has an elliptical radiation pattern suitable for medium range communication
• Suitable for use in areas with minimal obstructions such as suburban areas, towns and low density woodlands
• Recommended for bullbar installation, making it suitable for trucks and 4WDs
• 1065 mm length high quality black fibreglass tube protects the antenna from external elements
• Heavy duty black coated stainless steel spring reduces vibrations caused by the vehicle and driving conditions
• Elevated feed and ground independent design for maintaining a stable radiation pattern
• 4.5 metre RG58 coaxial cable, insulated to reduce signal interference
• FME Female connector, fitted to cable for ease of installing through the firewall grommet in vehicle
• FME Male to PL259 Male adaptor included, for solder free installation
• Installation spanner included, no additional tools required

Specs

• Frequency: 477 MHz
• Gain: 6 dBi
• Main Colour: Black
• Ground Independent: Yes
• Elevated Feed: Yes
• Total Length: 1065 mm
• Mast Length: 960 mm
• Mast Width: 22 mm (at widest point)
• Mast Type: Fibreglass Radome
• Spring Type: Heavy Duty Stainless Steel
• Antenna Mounting Hole: 18 mm
• Cable Slot Size: 5 mm
• Inclusions: FME to PL259 Adaptor; Dust Cover Cap; Mounting Nut; Installation Spanner
