SKU: 110CCRM

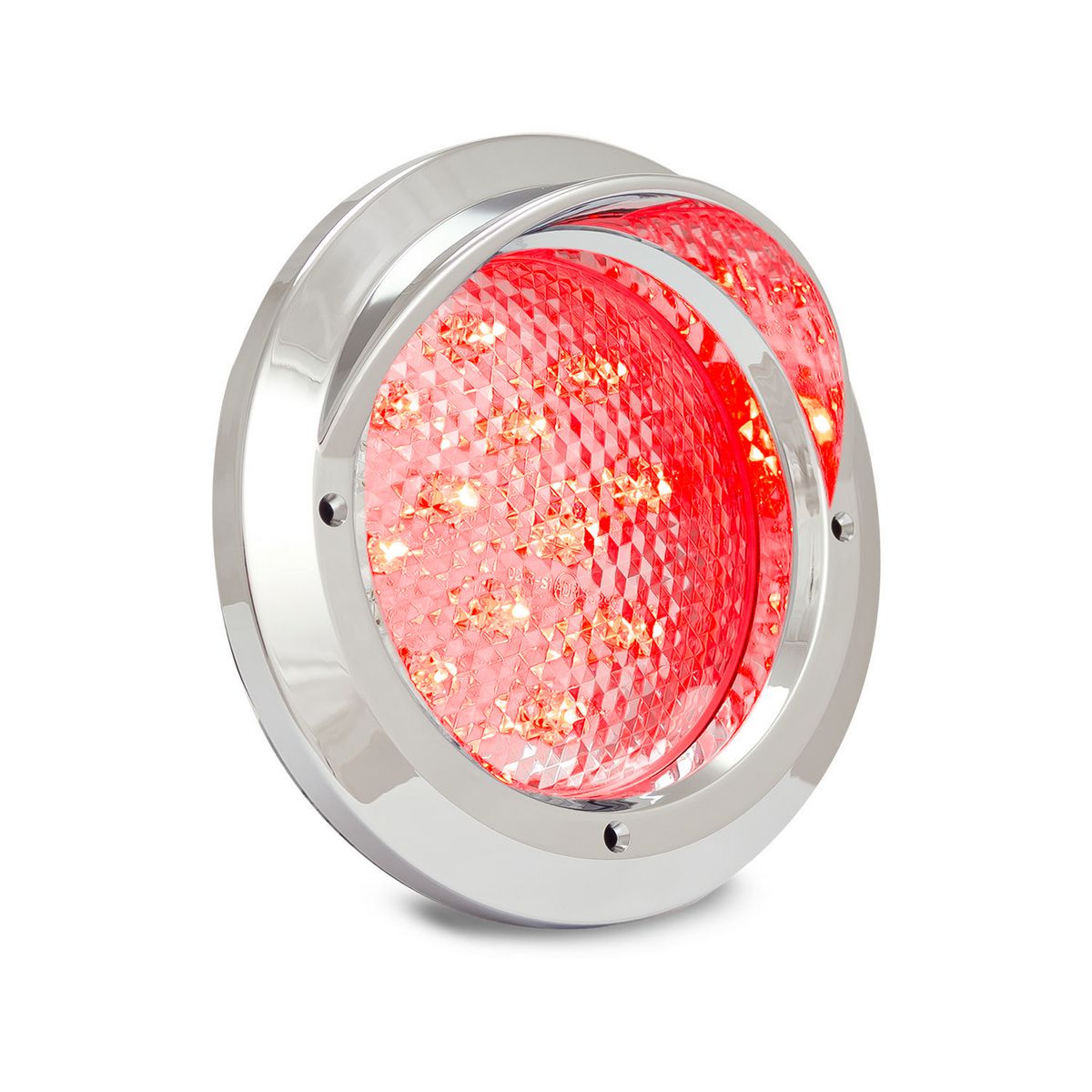

CHROME SERIES : MULTI 12-24VOLT STOP/TAIL LAMP 12 LEDS 148MM ROUND X 80MM INCLUDING GROMMET AND CHROME FLANGE.

Sale price$83.92

DESCRIPTION

Features / Specifications

  • Recessed Mount
  • ADR approved
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • 148mm round x 30mm
  •  5 Year Warranty

Fitting Instructions

Retro fit to existing 4 inch lamps. If new installation fit grommet or flange into cutout (Cut out 115mm round) plug wire into lamp and run through back then push into grommet/flange. Screw chrome housing with screws supplied. Please refer to ADR 13/00 for mounting instructions.

Technical Drawings



FUNCTIONS:
LED Qty 12
Cable Use plug 53102
.
Draw Stop Tail
@13.8V 0.23A 0.08A
@28V 0.14A 0.02A
.
Approvals Function Category  CRN
ADR Stop/Tail 49/00 35299

Features / Specifications

  • Recessed Mount
  • ADR approved
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • 148mm round x 30mm
  •  5 Year Warranty

Fitting Instructions

Retro fit to existing 4 inch lamps. If new installation fit grommet or flange into cutout (Cut out 115mm round) plug wire into lamp and run through back then push into grommet/flange. Screw chrome housing with screws supplied. Please refer to ADR 13/00 for mounting instructions.

Technical Drawings



FUNCTIONS:
LED Qty 12
Cable Use plug 53102
.
Draw Stop Tail
@13.8V 0.23A 0.08A
@28V 0.14A 0.02A
.
Approvals Function Category  CRN
ADR Stop/Tail 49/00 35299
