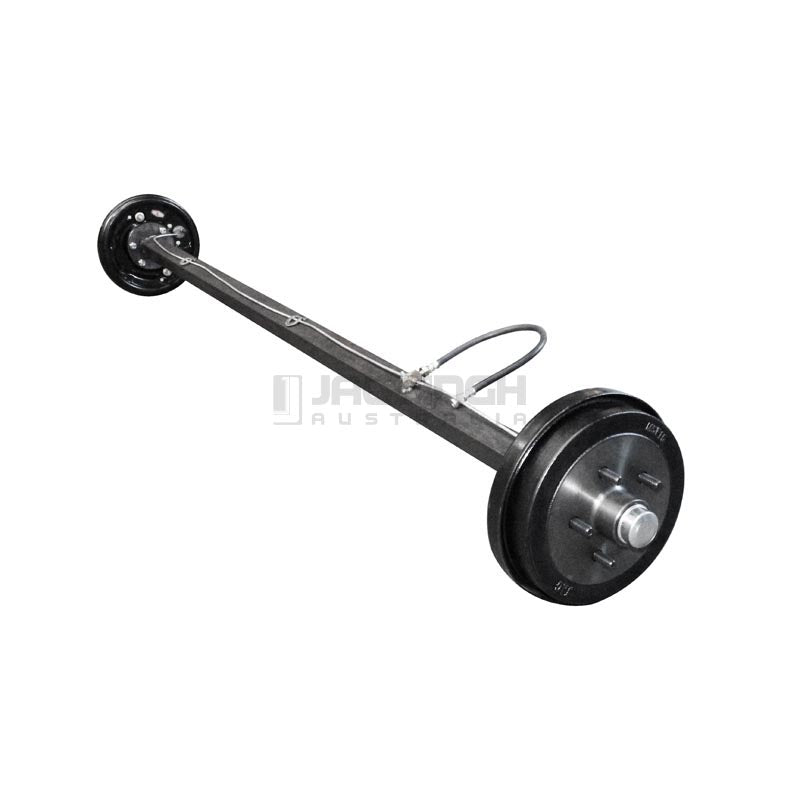

Complete Drum Braked Axle With Drum and Brake Setup
Axle Comes Complete with 2 Drums, 2 x Brake Plates, Bearings Greased
Hydraulic Axles come with Brake line installed on the axle

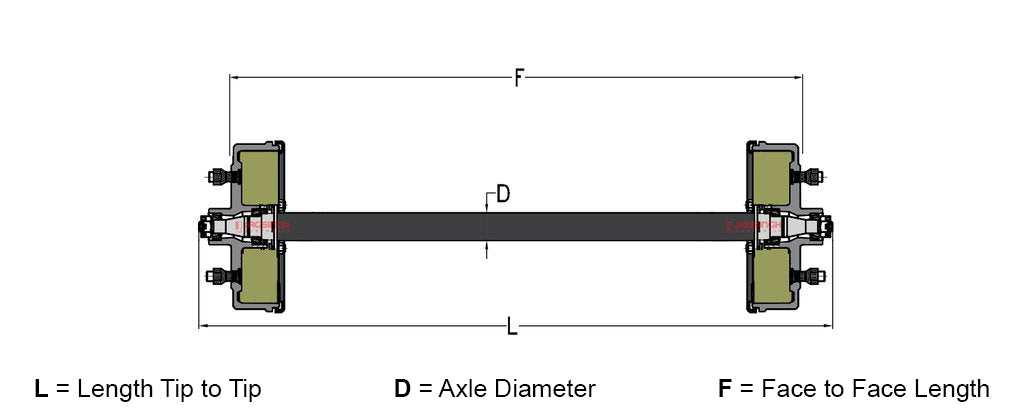

Axle Lengths Can be Picked from he Following:

RATINGS:

  • 1000KG/ LM Suited to 40mm Axle
  • 1400kg/SL Suited to 45mm Axle
  • 1600kg/Para Suited to 50mm Axle Parallel
  • 2000kg Suited to 50mm 2T Axle

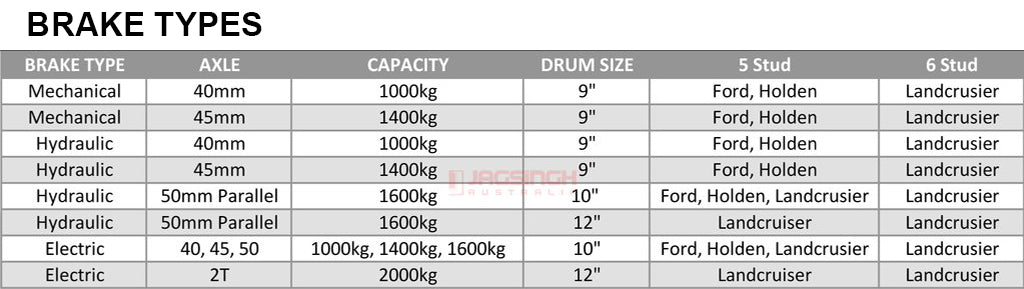

DRUM SIZE:

  • Mechanical Axles at 1000kg and 1400kg Completed with 9" Drums
  • Hydrualic Axles at 1000kg and 1400kg Completed with 9" Drums
  • Hydrualic Axle 1600kg Completed with 10" Drums
  • Electric Axle 1000kg, 1400kg, 1600kg Completed with 10" Drums
  • Electric Axle 2000kg Completed with 12" Drum

STUD PATTERNS:

  • 9" Drums Available in: Ford, Holden, Landcruiser 6 Stud
  • 10" Drums Available in: Ford, Holden, Landcruiser 6 Stud & 5 Stud
  • 12" Drums Available in: Landcruiser 6 Stud & 5 Stud
