LED AUTOLAMPS

DB2

DB Series

FEATURES / SPECIFICATIONS:

  • Our lowest priced rear combination lamp
  • Competes with cheap Chinese copies
  • 8 x Super Bright LEDs with Enhanced Lens Optics
  • ECE approved
  • IP67 100% Water proof
  • 12V Only
  • 2 Year Warranty
  • 150mm x 50mm x 23mm



Fitting Instructions

1/ Drill a 13mm hole for the wire outlet plug.
2/ Remove the protective film from the 3M tape.
3/ Push the cable and plug through the hole.
4/ Line up the lamp and press firmly.
5/ The lamp is held securely with high quality 3M tape.

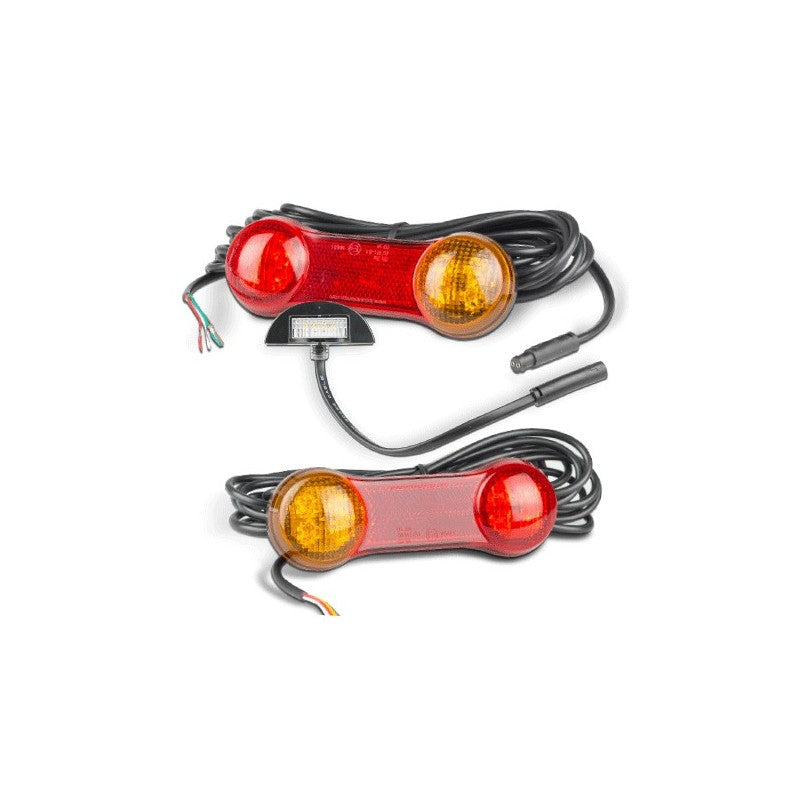

Wire Colour for Trailer Kit
Red - Stop, Brown - Tail, White - Earth,
Yellow - LHS Indicator, Green - RHS Indicator

Please refer to ADR 13/00 for mounting instructions.
