LED AUTOLAMPS

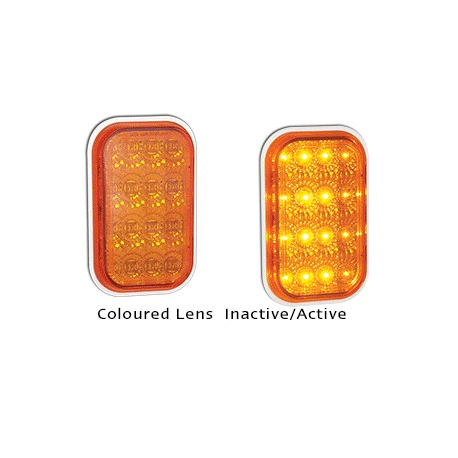

131AM

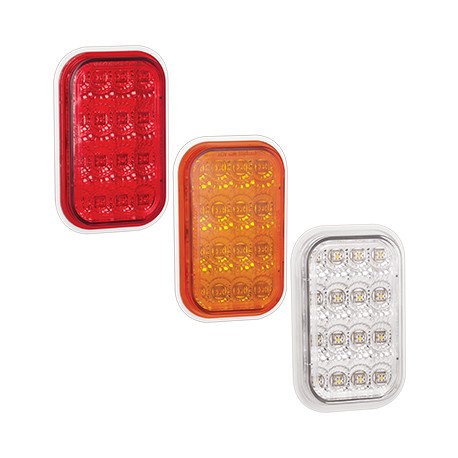

Indicator Lamp 131 Series

FEATURES / SPECIFICATIONS:

  • Internal Chrome Reflector
  • Horizontal or Vertical Mount
  • ADR approved
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • 134mm x 87mm x 12mm
  • 5 Year Warranty

FITTING INSTRUCTIONS:

Retro fit lamps. If new installation, fit grommet or flange into cutout (cut out 139 x 91mm, 23mm Radius), plug wire into lamp and run through back then push into grommet/flange. Please refer to ADR 13/00 for mounting instructions.



DIMENSIONS:
