SKU: 52WG

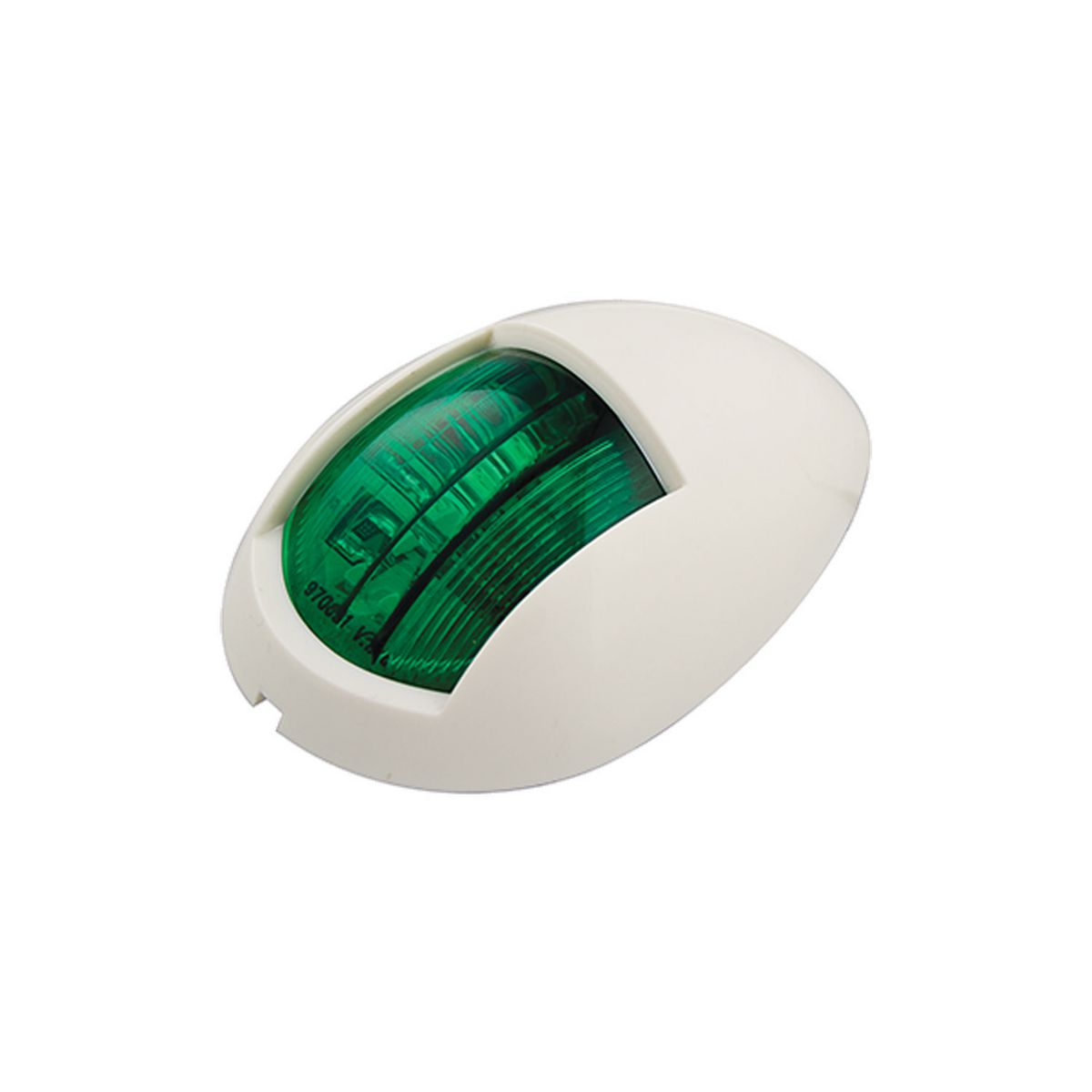

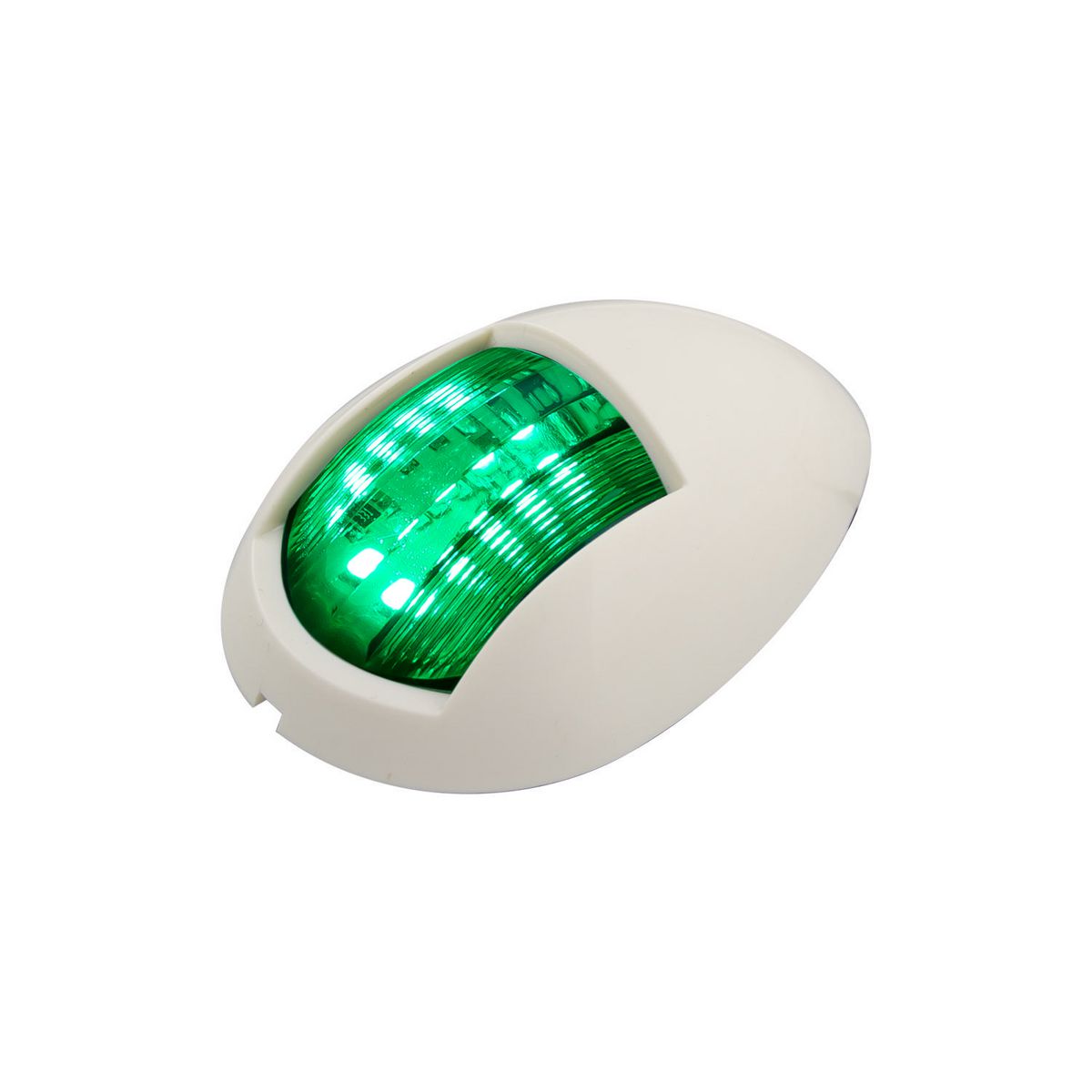

MARINE NAV STARBOARD

Sale price$46.17

DESCRIPTION

Features / Specifications

  • Navigational Lamps
  • Sea/salt spray resistant
  • Complies with International maritime organization codes and uniform shipping laws
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • ATAC Compliant
  • 5 Year Warranty

Fitting Instructions

Remove back plate with small screw driver and fix at two screw points with screws supplied, clip lamp and housing in place.

Technical Drawings

FUNCTIONS:
Size 76mm x 52mm x 25mm
Beam Angle 112.5˚
LED Qty 10
Cable 18cm
Draw Starboard
@13.8V 0.12A
@28V 0.20A
Approvals ATAC Compliant

Features / Specifications

  • Navigational Lamps
  • Sea/salt spray resistant
  • Complies with International maritime organization codes and uniform shipping laws
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • ATAC Compliant
  • 5 Year Warranty

Fitting Instructions

Remove back plate with small screw driver and fix at two screw points with screws supplied, clip lamp and housing in place.

Technical Drawings

FUNCTIONS:
Size 76mm x 52mm x 25mm
Beam Angle 112.5˚
LED Qty 10
Cable 18cm
Draw Starboard
@13.8V 0.12A
@28V 0.20A
Approvals ATAC Compliant
