SKU: MaxilampC1XRE

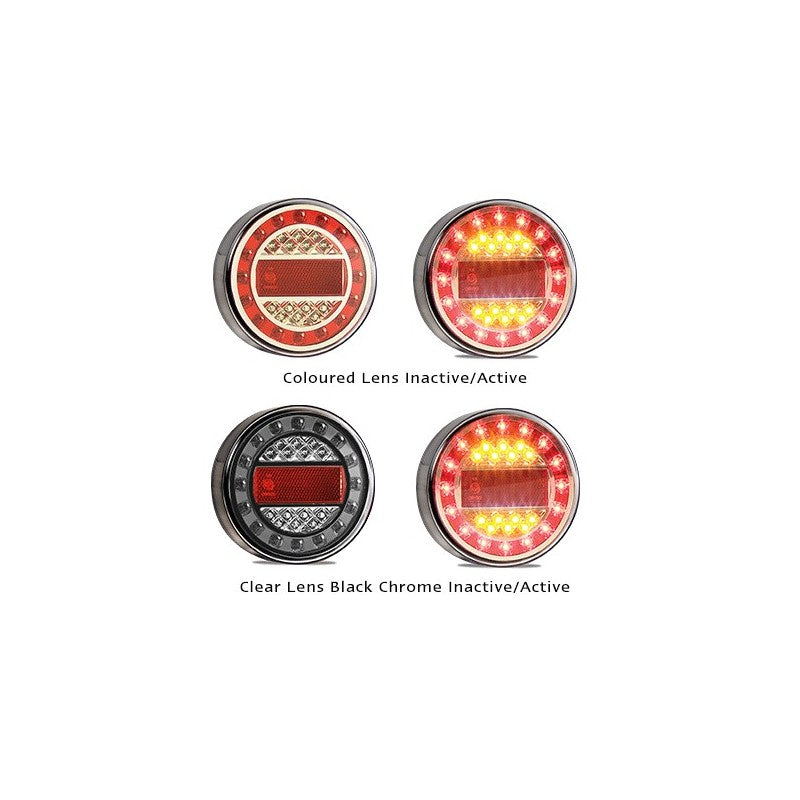

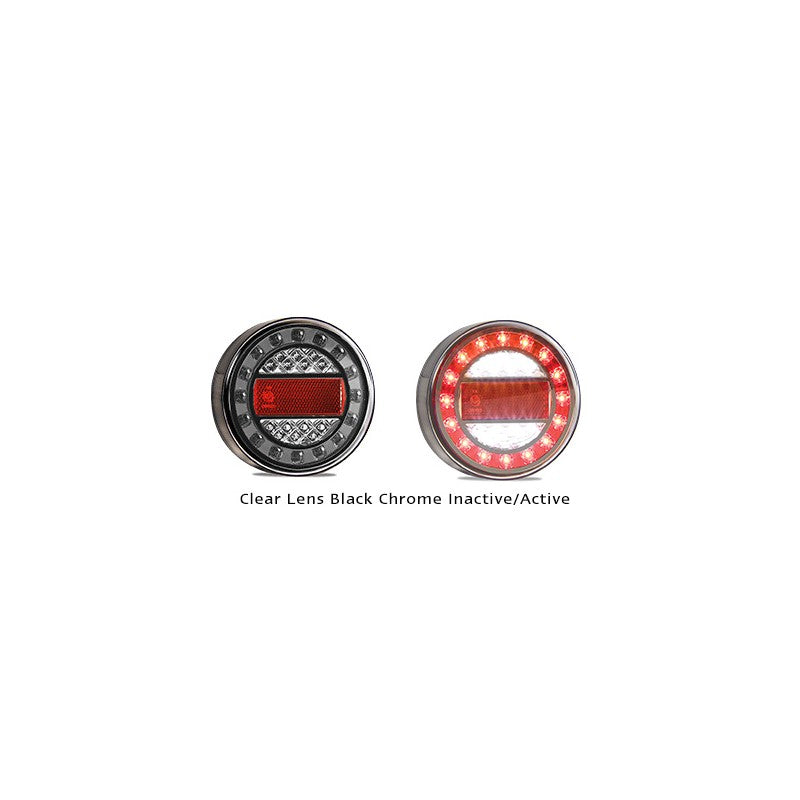

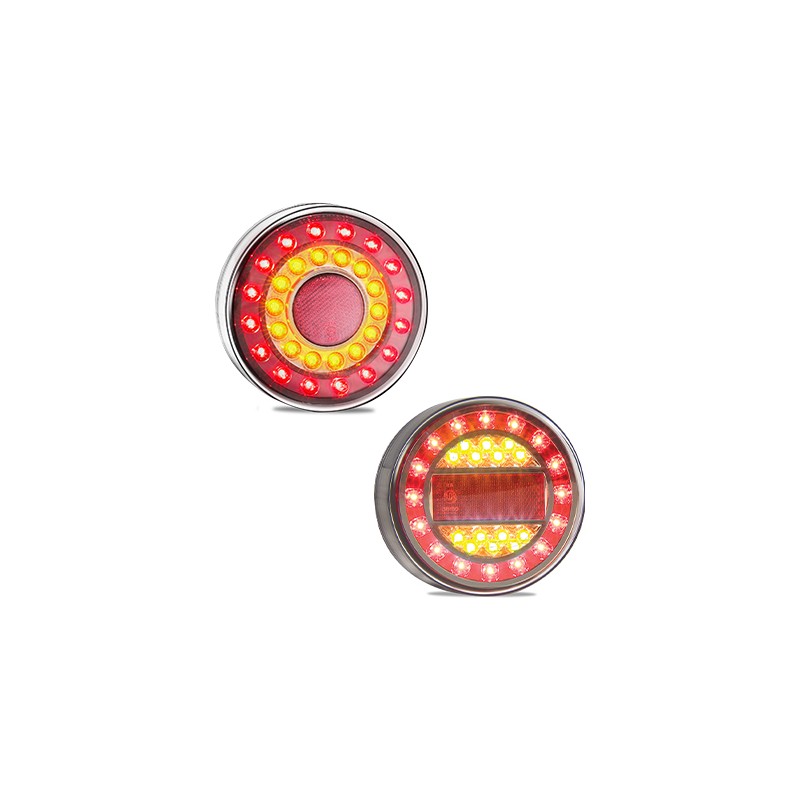

Maxilamp Single Stop/ Tail/ Indicator/ Reflector

Sale price$121.68

DESCRIPTION

Features / Specifications

  • High Brightness LEDs
  • 3M Tape Available
  • ADR/ECE approved
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • 7 Year Warranty
  • 125mm Round x 40mm
  • Sold Individually

Fitting Instructions

Mount onto flat surface with bolts or 3M tape depending on product choice. The Bolts
have been tested to a torque breaking strain of 140±10 Kg-cm. Please refer to ADR 13/00 for mounting instructions.

Technical Drawings



FUNCTIONS
LED Qty 30
Cable 40cm
Draw Stop Tail Ind
@13.8V  0.34A  0.07A  0.37A
@28V 0.17A 0.06A 0.16A
Approvals Function Approval No.
ECE Stop/Tail R1-S1-E9-02.6445
ECE Indicator 2a-E9-01.6445
ECE Reflector 1a-E9-01.1472
CTA 6/00, 47/00, 49/00 CTA-060074

Features / Specifications

  • High Brightness LEDs
  • 3M Tape Available
  • ADR/ECE approved
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • 7 Year Warranty
  • 125mm Round x 40mm
  • Sold Individually

Fitting Instructions

Mount onto flat surface with bolts or 3M tape depending on product choice. The Bolts
have been tested to a torque breaking strain of 140±10 Kg-cm. Please refer to ADR 13/00 for mounting instructions.

Technical Drawings



FUNCTIONS
LED Qty 30
Cable 40cm
Draw Stop Tail Ind
@13.8V  0.34A  0.07A  0.37A
@28V 0.17A 0.06A 0.16A
Approvals Function Approval No.
ECE Stop/Tail R1-S1-E9-02.6445
ECE Indicator 2a-E9-01.6445
ECE Reflector 1a-E9-01.1472
CTA 6/00, 47/00, 49/00 CTA-060074
