SKU: SPM180K

MONOCRYSTALLINE 12V 180W FOLDING SOLAR PANEL KIT

Sale price$1,550.28

DESCRIPTION

The largest of the folding kits, this 180 Watt panel can produce upwards of 11 Amps per hour in ideal conditions, producing ample power to charge your 4WD, camper trailer or caravan batteries whilst away from conventional power.

FEATURES

Frameless foldable design

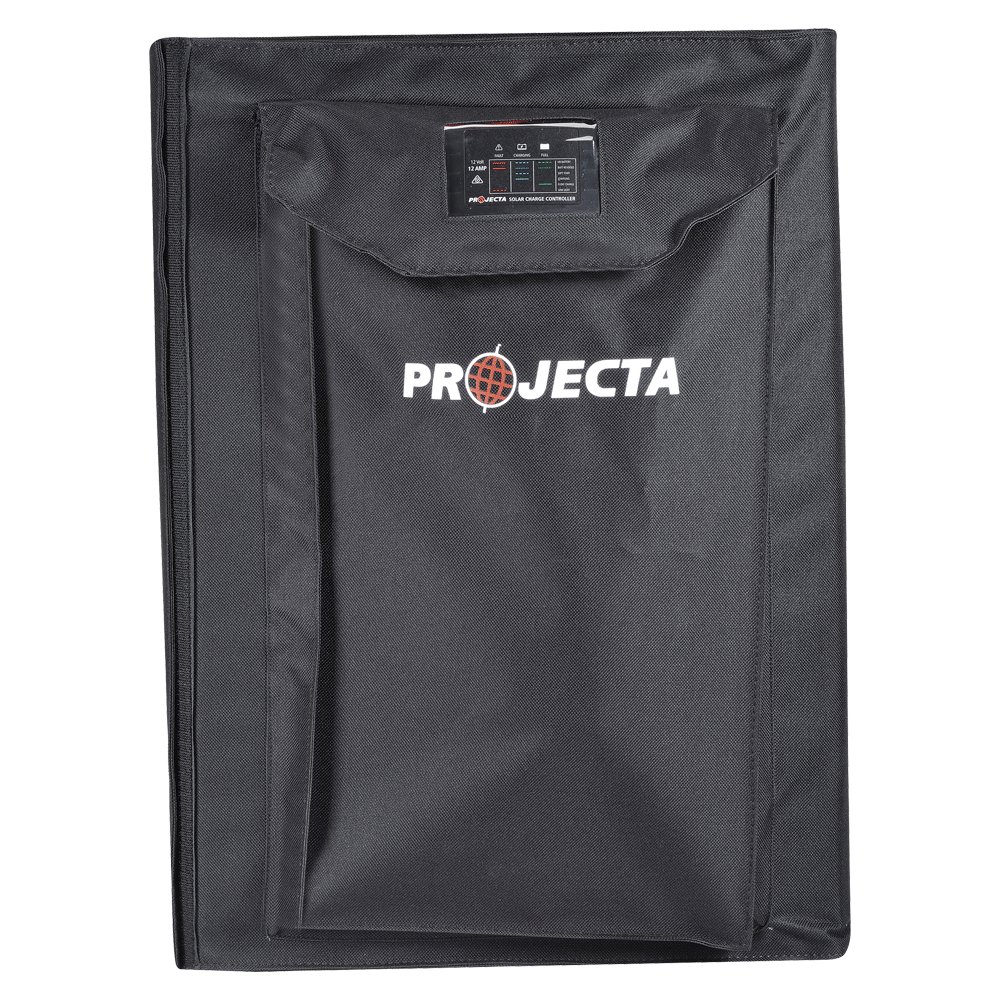

Folds up into a durable self contained canvas bag for easy, safe storage

5 metre cable

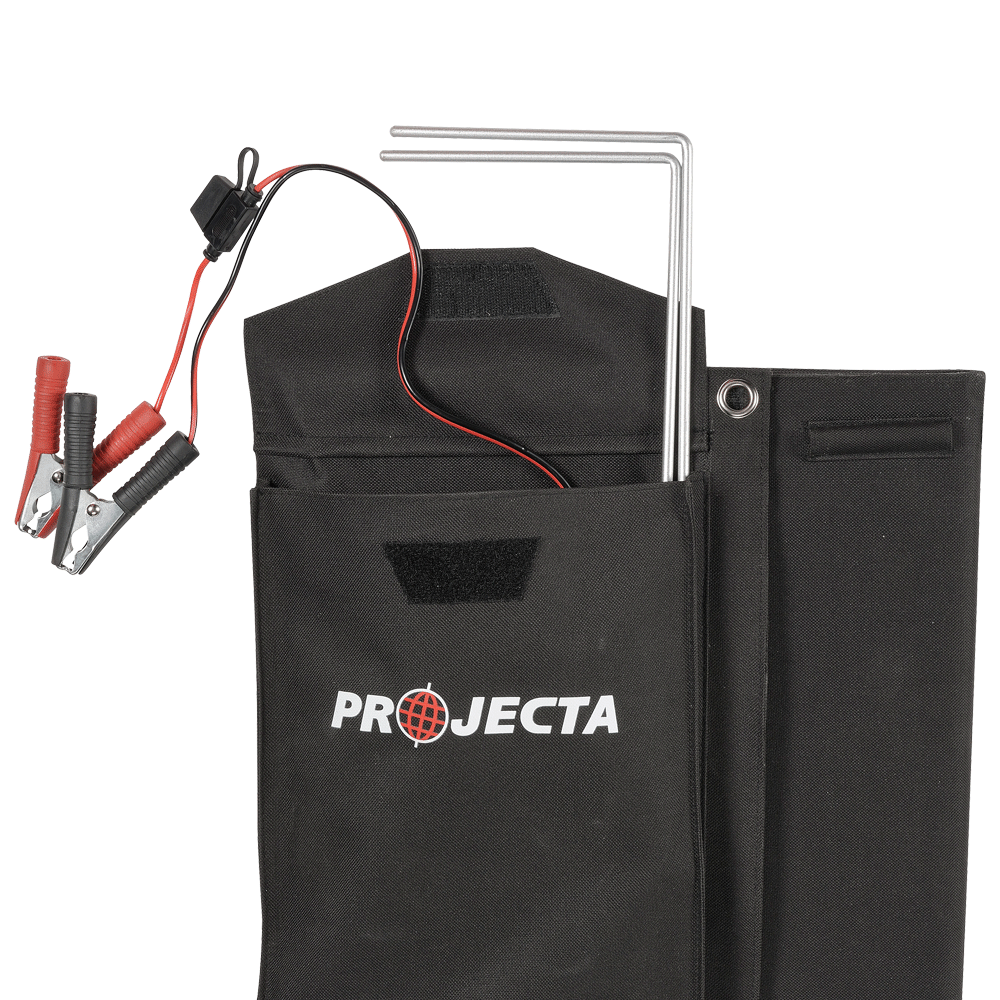

Fused battery lead makes for trouble free battery connection. Front pocket for easy storage

Metal support legs

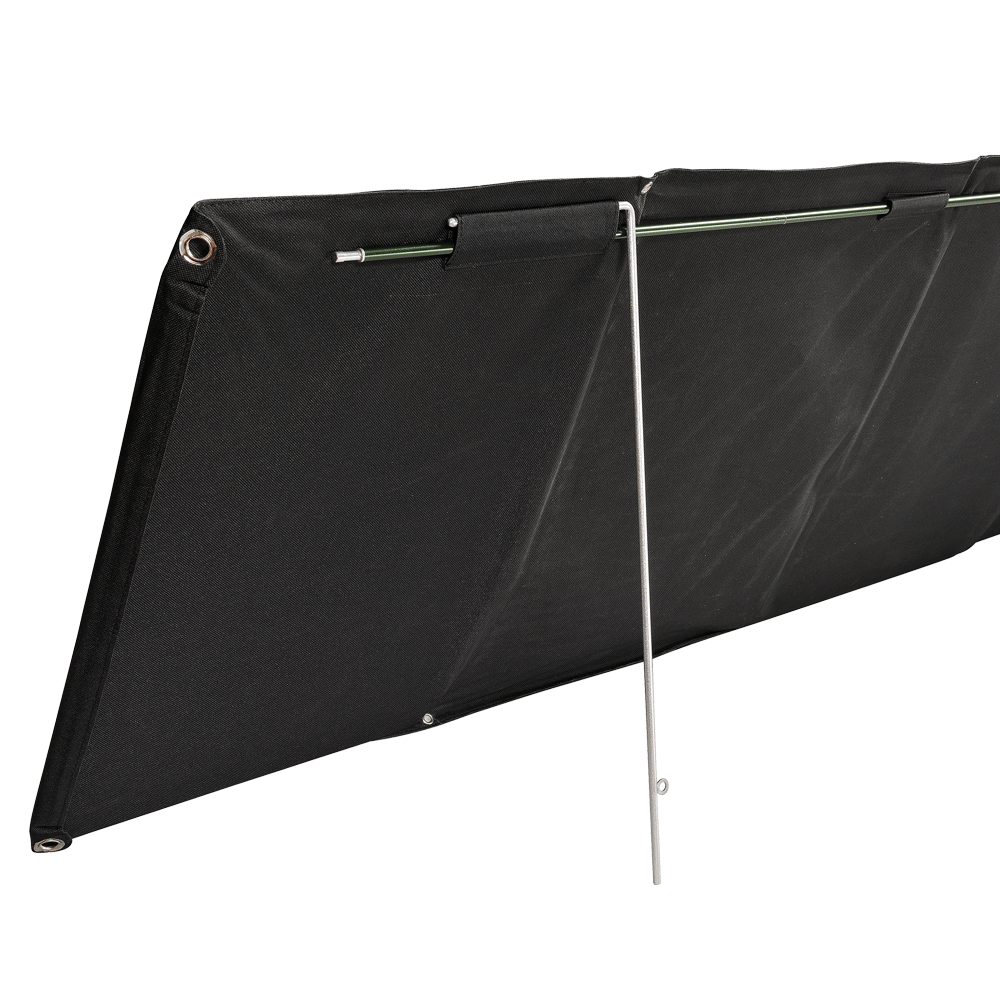

Legs keep the panel at the optimum angle for maximum performance

Built-in solar controller

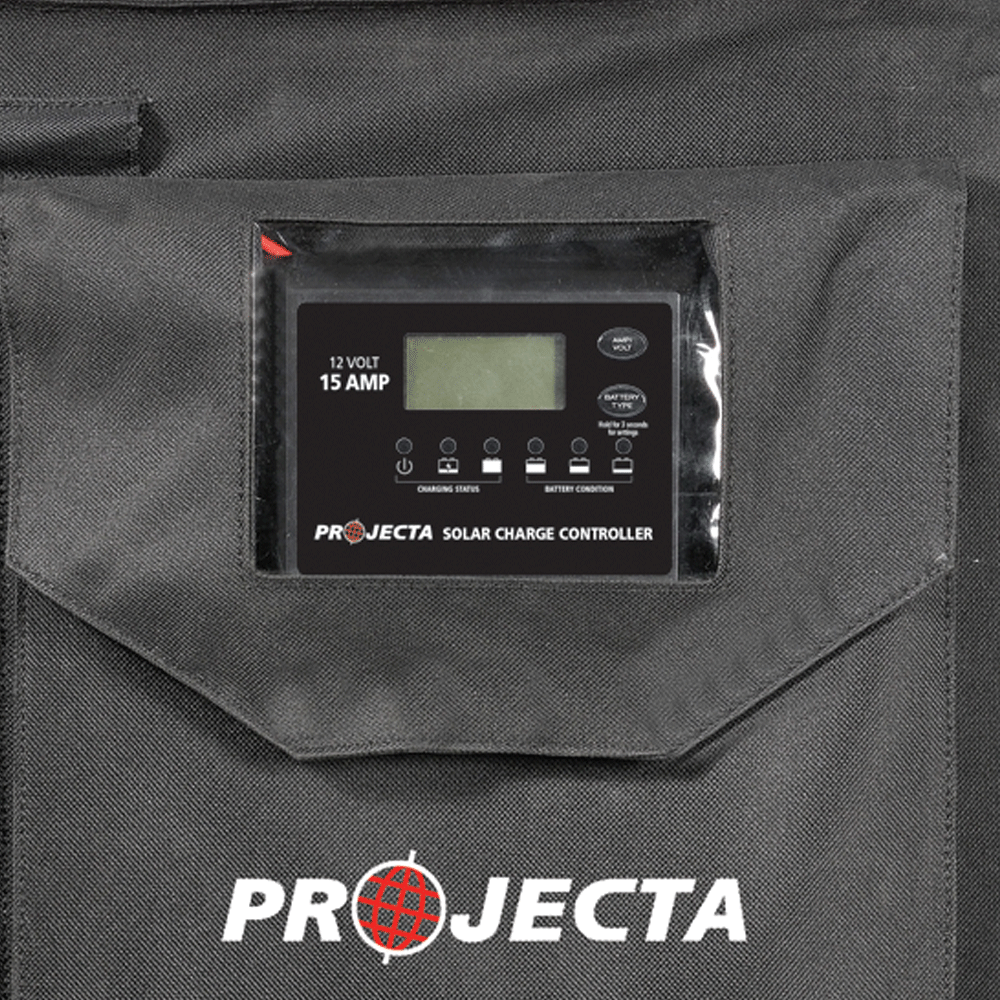

Advanced 4 stage controller maintains your battery in peak condition and protects against overcharging and solar discharge

Scratch resistant
Panels feature a scratch resistant matt coating for enhanced durability discharge



SPECIFICATIONS

PART NO

SPM180K

TYPE

Monocrystalline

RATED POWER

180W

OPEN CIRCUIT

21V

SHORT CIRCUIT CURRENT

11.0A

PEAK POWER VOLTAGE

18.0V

PEAK POWER CURRENT

10.3A

TEST CONDITIONS

1000W/m2, 25°C

WEIGHT

8.3kg

BATTERY CHARGE TIMES

AUTOMOTIVE

250–1800CCA

MARINE

250–2300MCA

DEEP CYCLE

40–300Ah

CHARGING TIME

7–35 hours

DIMENSIONS (mm)
Folded:
Unfolded:

Height
560
560
Width
380
2580
Depth
90
45



REPLACEMENT PART

SPM180LEG Metal Support leg
SPM180POL Collapsible support pole



INSTRUCTION MANUAL

> Download PDF
