SKU: 235W12E

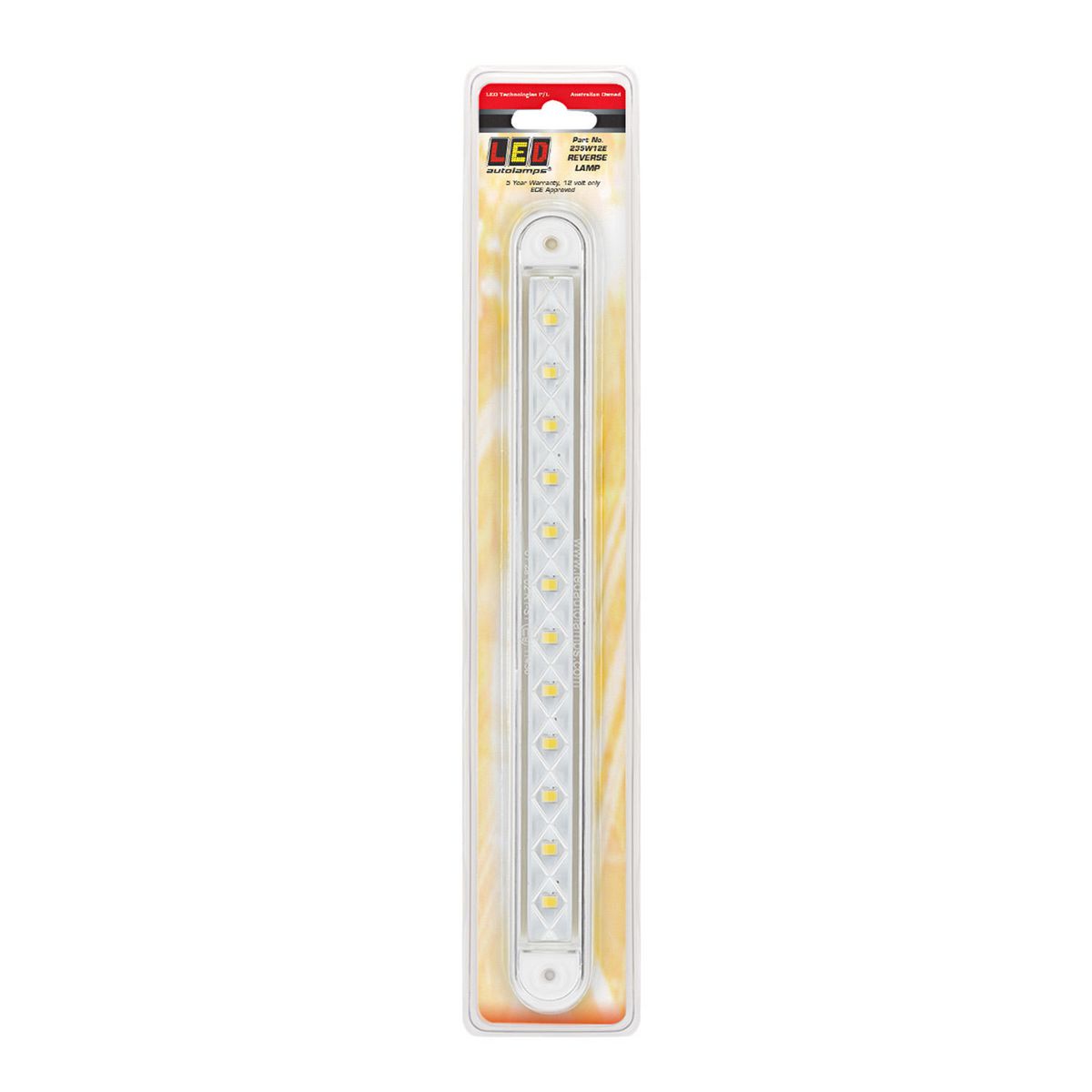

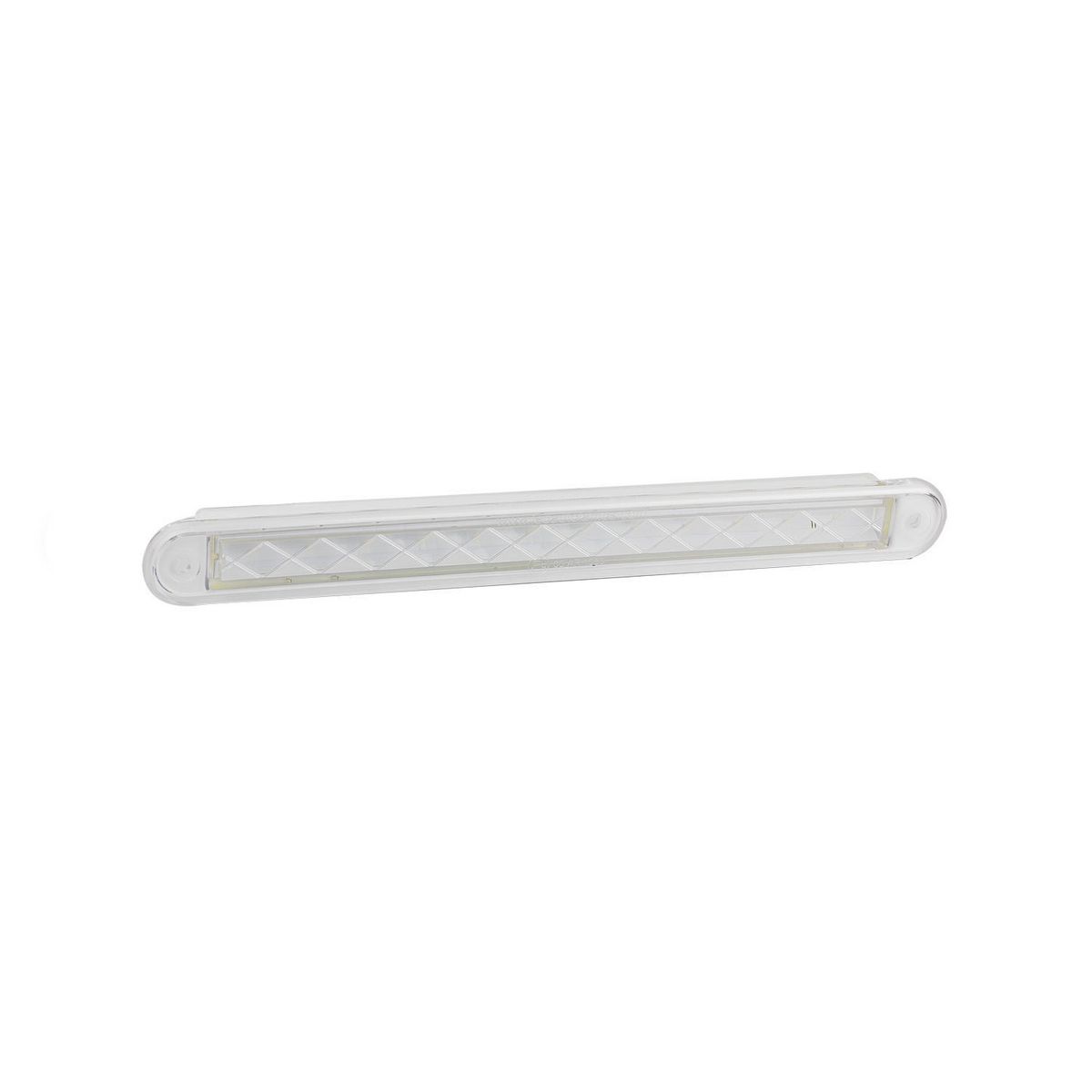

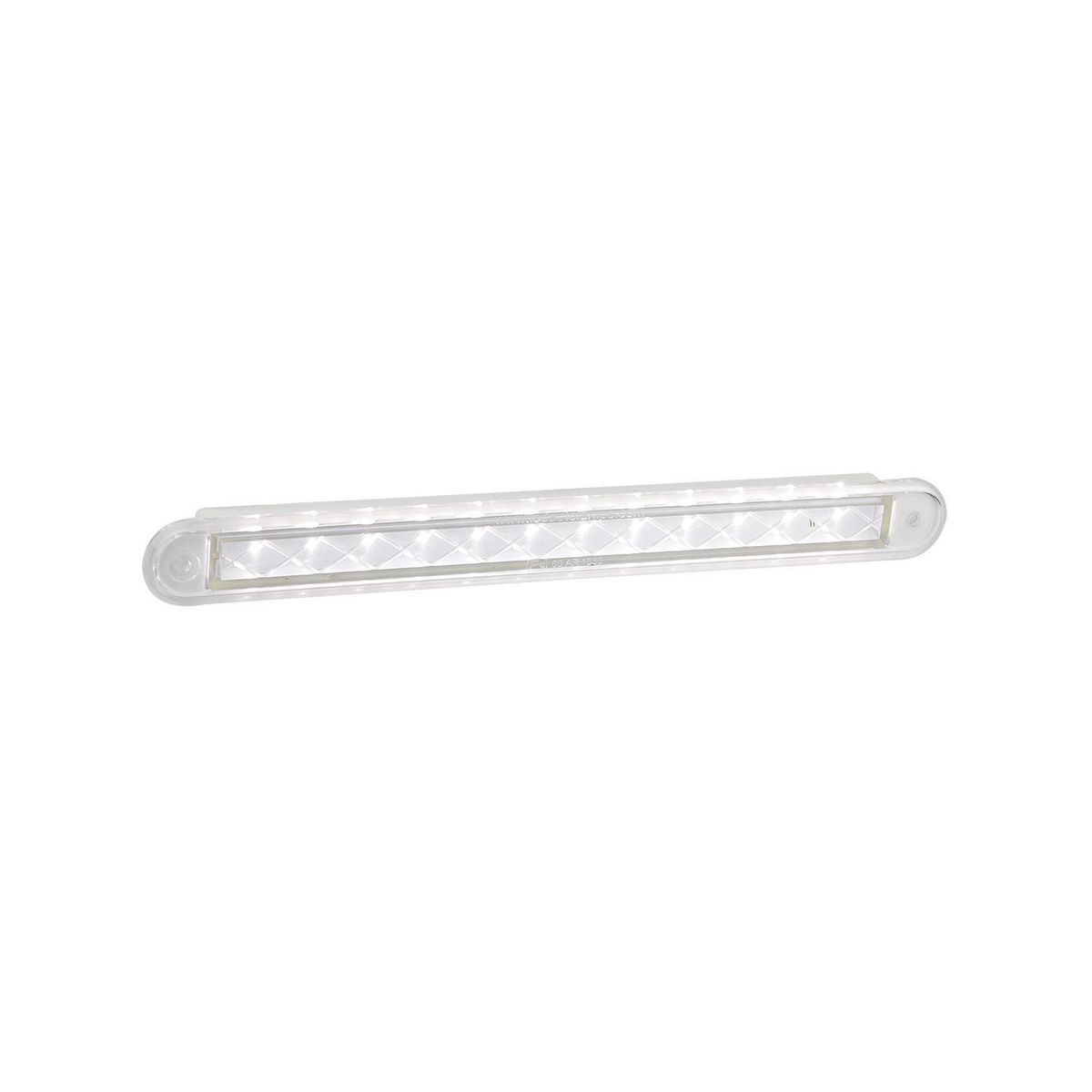

REVERSE STRIP LAMP 12VOLT 12 SQUARE LEDS NO BRACKET

Sale price$53.90

DESCRIPTION

Features / Specifications

  • Recessed mount
  • Surface Mount Brackets Available
  • Low profile slimline design
  • ADR/ECE approved
  • IP67 100% Water proof
  • 12 Volt or 24 Volt
  • 237mm x 25mm x 3mm
  • 5 Year Warranty

Fitting Instructions

Recessed - Mount onto flat surface horizontally. Push lamp and grommet into cutout (cut out 203mm x 19mm) in mounting surface, run wires through back and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions.

Technical Drawings

Function

LED Qty 12
Cable 40cm cable

Draw Rev
@13.8V 0.26A
28V 0.13A

Approvals Function Approval No.
ECE Reverse AR-E9-00.1030
CTA Reverse 1/00 CTA-060124

Features / Specifications

  • Recessed mount
  • Surface Mount Brackets Available
  • Low profile slimline design
  • ADR/ECE approved
  • IP67 100% Water proof
  • 12 Volt or 24 Volt
  • 237mm x 25mm x 3mm
  • 5 Year Warranty

Fitting Instructions

Recessed - Mount onto flat surface horizontally. Push lamp and grommet into cutout (cut out 203mm x 19mm) in mounting surface, run wires through back and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions.

Technical Drawings

Function

LED Qty 12
Cable 40cm cable

Draw Rev
@13.8V 0.26A
28V 0.13A

Approvals Function Approval No.
ECE Reverse AR-E9-00.1030
CTA Reverse 1/00 CTA-060124
