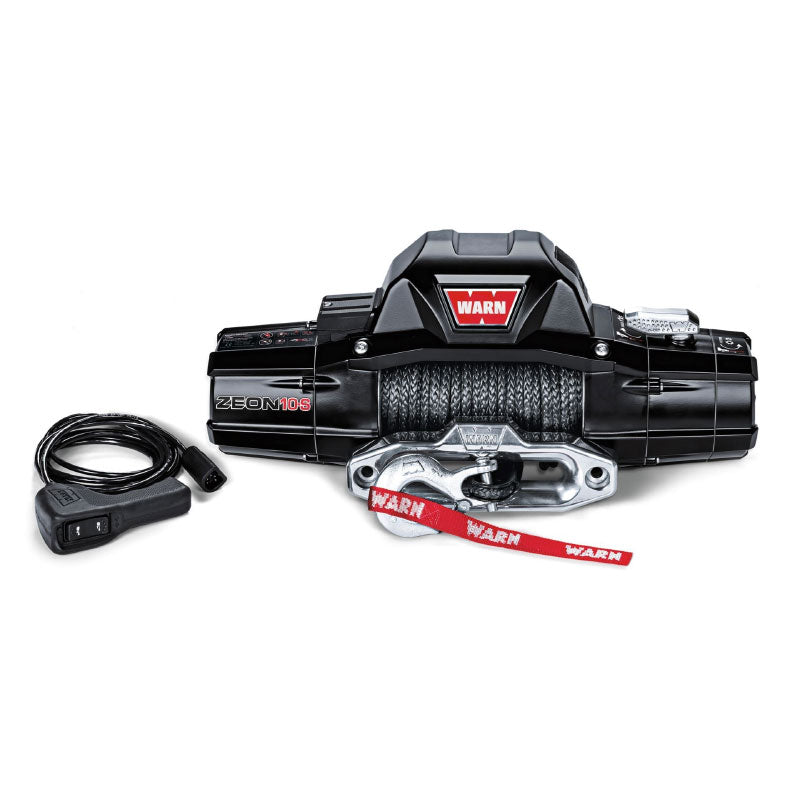

This Warn Industries ZEON (R) 10-S 12 volt electric Winch is vehicle mounted and has a pull capacity of 10,000 pound. It has a 100 feet synthetic rope. Note: This Winch will require winch mount for proper installation.

Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 Pound single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

  • 10,000 Pound (4536 Kilogram) Single-Line Pulling Capacity
  • Includes 100 Foot Of 3/8 Inch Warn Spydura Synthetic Rope, Which Includes A Temperature-Resistant Sleeve On The First Layer, A Ballistic Nylon Sliding Sleeve And A Polished Aluminum Hawse Fairlead
  • Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
  • New-Design Planetary Gear Train And Series-Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
  • Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion. Improved Winch Sealing To Keep The Elements Out
  • Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
  • Limited Lifetime Warranty

 SPECIFICATIONS:

  • Type: Electric
  • Mount Type: Vehicle Mounted
  • Recommended Use: Vehicle Recovery
  • Voltage: 12 Volt
  • Electrical Control Type: Contactors
  • Motor Type: Series Wound
  • Thermal Shutoff: No
  • Drive Gear Type: Planetary
  • Gear Reduction Ratio: 216:1
  • Free Spooling: Yes
  • Brake Type: Mechanical Cone
  • Line Diameter (IN): 3/8 Inch
  • Line Length (FT): 100 Feet
  • Line Material: Synthetic
  • Fairlead Type: Hawse
  • Conforms To J706 Standards: No
  • Remote Type: Handheld Remote Switch
  • Mounting Hole Quantity: 4
  • Operation Type: Automatic
  • Mounting Pattern Length (IN): 10 Inch
  • Mounting Pattern Width (IN): 4-1/2 Inch
  • Includes Mounting Hardware: No
  • Color: Black
  • Max Amp Draw/ Line Pull: 409 Amp Draw/ 10000 Pound
  • Max Line Pull/ Line Speed: 10000 Pound/ 4.8 Feet Per Minute
