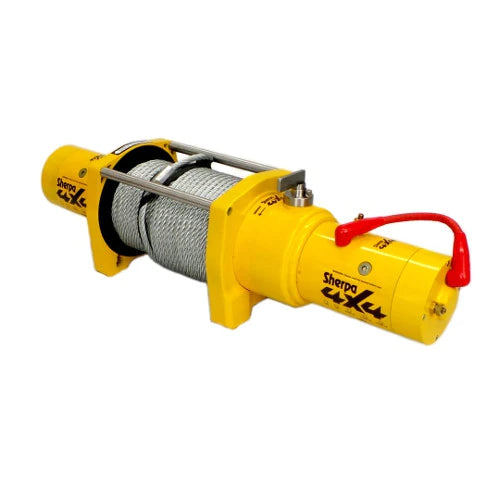

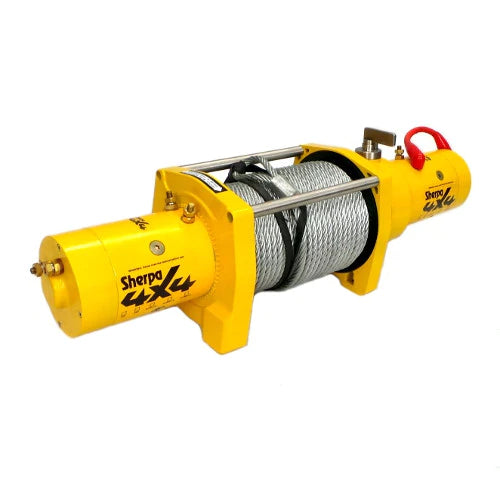

'THE MULE' - 17,000LB - DUAL MOTOR WINCH
DESCRIPTION
A massive 12.6 HP of power, the new Sherpa 4x4 dual motor winch couples a 3 stage planetary gearbox making this one of the most powerful winches on the market. The winch is ideal for trucks, Iveco Dailys, 4x4's towing boats and caravans as well as standard 4x4's looking for an extreme recovery winch. Available in 12V or 24V with a genuine Albright solenoids as well as 45m cable and rope options.
| Specifications | Value |
|---|---|
| Rated Line Pull | 17,000lb (7,700kg) |
| Motor | Pulling In 6.6 + 6.0HP | Spooling Out - 6.6HP (12V or 24V options) |
| Gear reduction ratio | 246:1 3 stage planetary gearbox |
| Rope/Cable |
10.0mm synthetic rope rated to 23,760lb 10mm cable |
| Mounting Bolt Diameter | 11.2mm |
| Drum Size (Dia x Length) | 64mm x 224mm |
| Mounting Bolt Pattern | 254mm x 114.3mm |
| Clutch |
180 degree turn, free spooling, slide ring gear 6 Position indexible to users requirements |
| Brake | Automatic in gearbox |

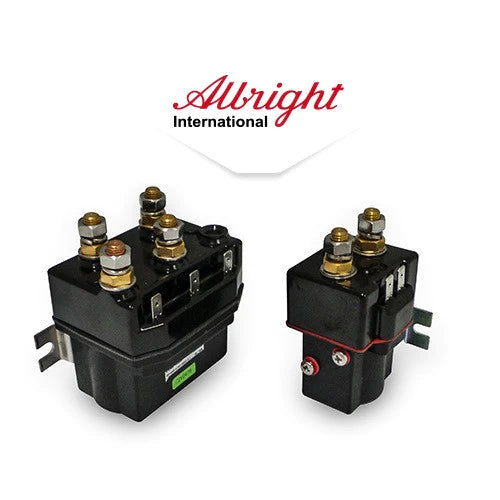

| Solenoid | Albright International Heavy Duty |
| Duty Cycle | Intermittent |

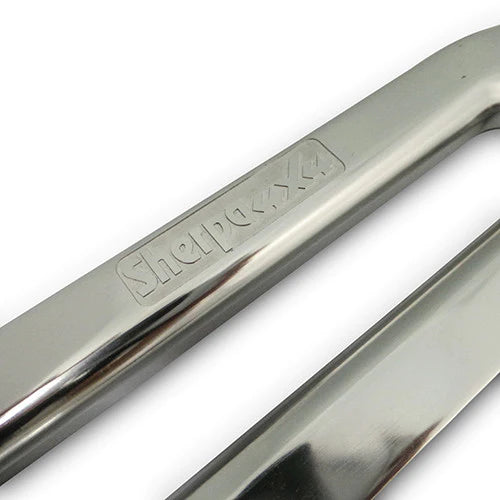

| Fairlead / Hawse | Cable (4 way roller fair lead) | Rope (polished aluminium hawse) |
| Battery Leads | 1.8m long |

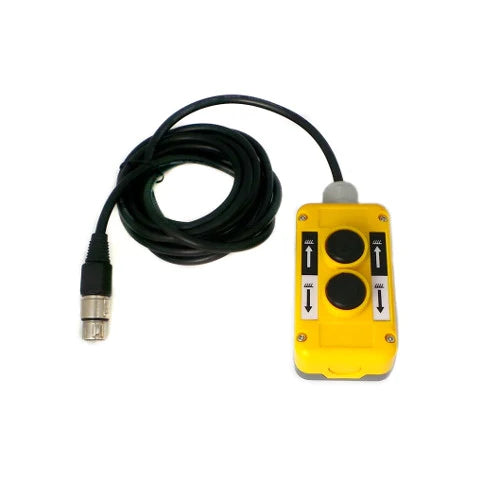

| Hand Remote Lead | 3.5m long |
| Certification | CE - designed to meet European standards |
| Water Ingress Rating | IP68 |
| Warranty | 5 Years |
