SKU: 134RMG

134 Series Lamp with Reflector

Sale price$50.38

Style: Stop/Tail/Reflector
DESCRIPTION

FEATURES/SPECIFICATIONS:

  • Low Profile Recessed Fitting
  • ECE Road Approved
  • IP67 100% Water proof
  • Voltage Range 9-32 Volt

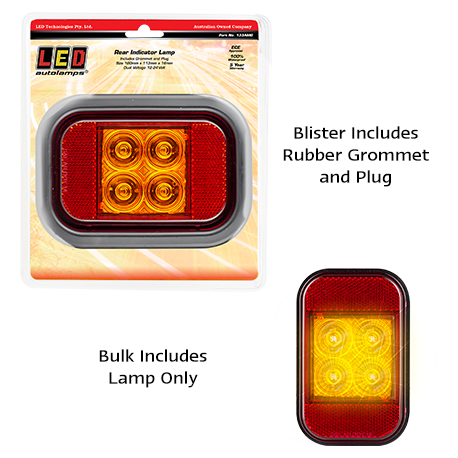

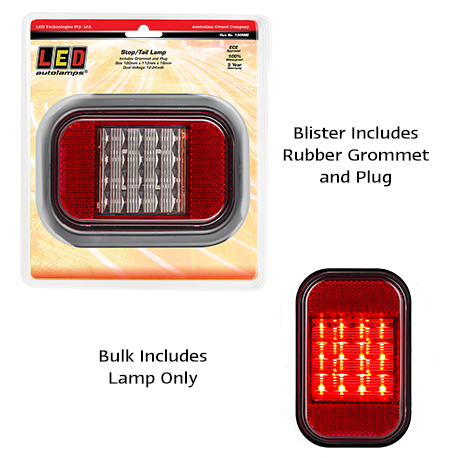

  • Blister Pack Contains Grommet/Plug
  • 113mm x 160mm x 12mm (Grommet)
  • 5 Year Warranty



FITTING INSTRUCTIONS

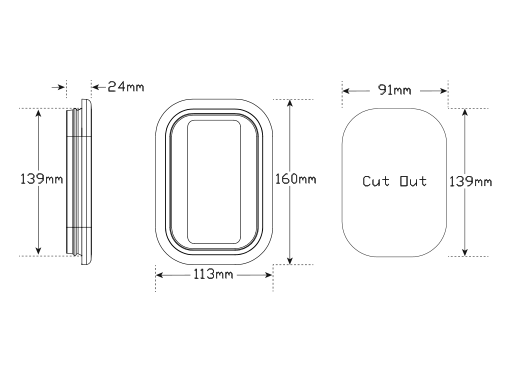

Retro fit lamps. If new installation, fit grommet or flange into cutout (cut out 139 x 91mm, 23mm radius), plug 53102 wire into lamp and run through back then push into grommet/flange. Please refer to ADR 13/00 for mounting instructions.

FEATURES/SPECIFICATIONS:

  • Low Profile Recessed Fitting
  • ECE Road Approved
  • IP67 100% Water proof
  • Voltage Range 9-32 Volt
  • Blister Pack Contains Grommet/Plug
  • 113mm x 160mm x 12mm (Grommet)
  • 5 Year Warranty



FITTING INSTRUCTIONS
Retro fit lamps. If new installation, fit grommet or flange into cutout (cut out 139 x 91mm, 23mm radius), plug 53102 wire into lamp and run through back then push into grommet/flange. Please refer to ADR 13/00 for mounting instructions.
